01 - Top And Cabinet Parts


02 - Door And Latch Parts

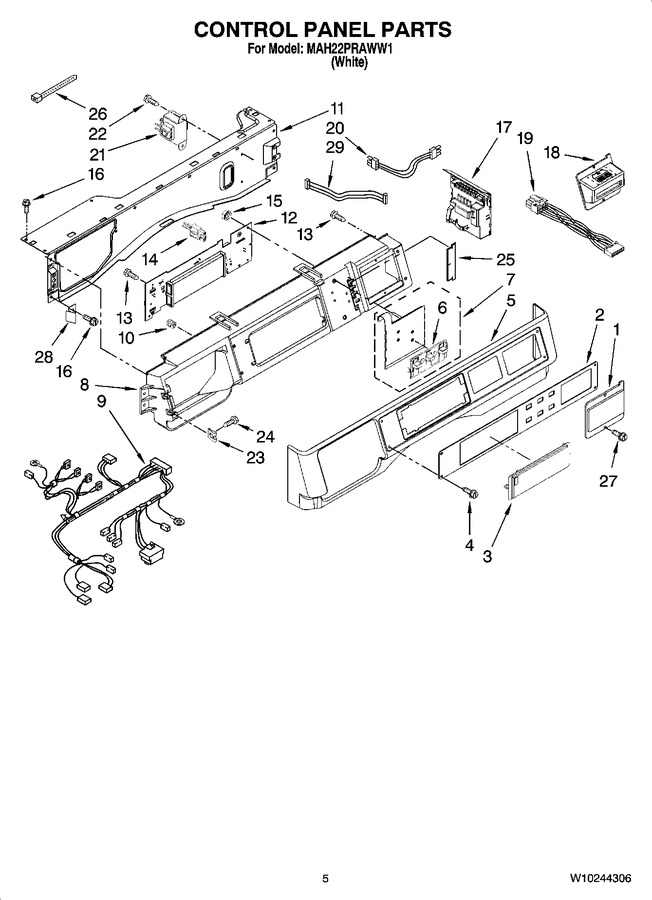

03 - Control Panel Parts


04 - Dispenser Parts


05 - Pump And Motor Parts


06 - Tub And Basket Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11131294		Cover, Card Reader   (Replaces: W10137477)		Appelez-nous	-
2	W10137437		Facia / Overlay		Appelez-nous	-
3	WPW10131114		Cover, Display   (Replaces: W10131114)				$ 47.54
4	WPW10137457		Screw, 8-32 X 1/2   (Replaces: W10137457)				$ 6.94
5	W10779084		Console, Outer   (Replaces: W10137458)				$ 131.70
6	WPW10424308		Push Button (2)   (Replaces: W10131113)			Immediately	$ 20.42
7	WPW10135389		Push Button & Switch Assembly   (Replaces: W10135389)				$ 139.62
8	W11028369		Console, Inner   (Replaces: W10137426)				$ 320.33
9	W10166474		Harness, Wiring (main)		Appelez-nous	-
10	WPW10189313		Insert   (Replaces: W10189313)				$ 8.79
11	W10294428		Bracket, Console   (Replaces: W10137396)		Appelez-nous	-
12	WPW10166358		User Interface   (Replaces: W10137418)				$ 398.60
13	489136		Screw, 3-24 X 3/8				$ 10.29
14	W11129439		Jumper, Service Vault Switch   (Replaces: W10133282)				$ 16.82
15	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 8.79
16	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 10.94
17	WPW10525360		Microcomputer, Machine Control   (Replaces: W10141556)				$ 144.86
18	WPW10137454		Bezel, Card Reader   (Replaces: W10137454)				$ 6.03
19	W10858740		Harness, Wiring (card Reader)   (Replaces: W10133304)				$ 23.96
20	W10837604		Harness, Wiring (console Uic)   (Replaces: W10155149)		Appelez-nous	-
21	WPW10131839		Transformer 120 To 22.5 Vac.   (Replaces: W10131839)			Immediately	$ 133.55
22	8540329		Screw, 8-18 X 7/16		Appelez-nous	-
23	WP9781235		Nut, U-type (2)   (Replaces: 9781235)				$ 11.96
24	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10131119)				$ 6.95
25	W10187276		Seal, Console		Appelez-nous	-
26	WP2205813		Cable Tie   (Replaces: 3429563)				$ 7.72
27	W11096900		Screw, 3-24 X 3/8   (Replaces: W10001220)		Appelez-nous	-
28	W10137488		Clip, Console		Appelez-nous	-
29	W10155150		Harness, Test				$ 3.20
