SELECT A DIAGRAM

01 - Top And Cabinet Parts

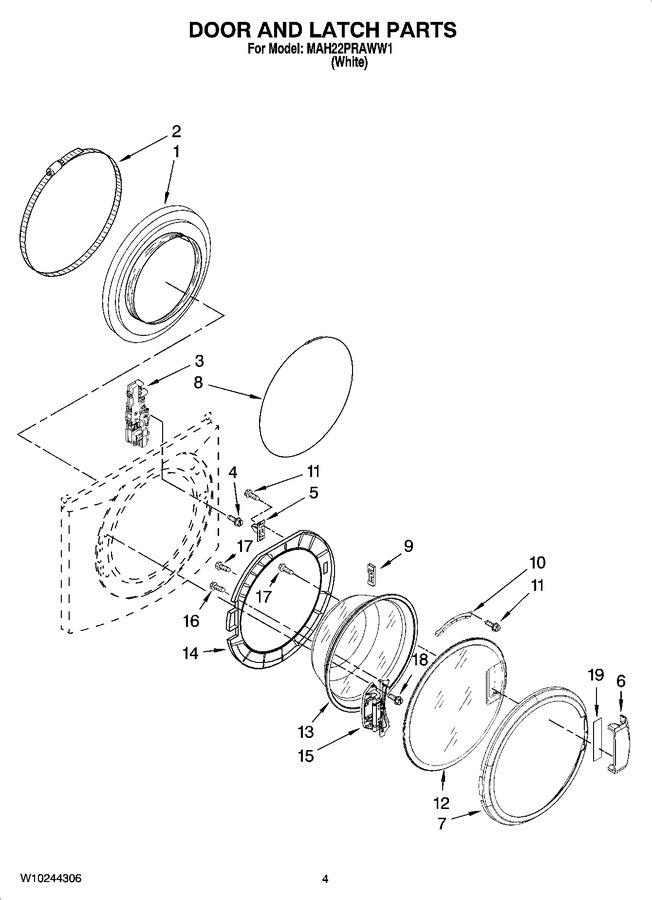

02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Pump And Motor Parts


06 - Tub And Basket Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10130455		Bellow   (Replaces: W10130455)				$ 320.91
2	WP8540108		Clamp, Bellow   (Replaces: 8540108)			Immediately	$ 25.64
3	WPW10375379		Lock, Door   (Replaces: W10153867)			Immediately	$ 236.55
4	WP8540725		Screw   (Replaces: 8540725)				$ 8.52
5	WP8540221		Hook, Door   (Replaces: 8540221)			Immediately	$ 12.39
6	WPW10112925		Handle, Door (includes Item 19)   (Replaces: W10117474)			Immediately	$ 34.83
7	WPW10112914		Trim Ring, Outer Door   (Replaces: W10112914)				$ 270.89
8	W11032829		Clamp, Bellow (front)   (Replaces: 8540107)			Immediately	$ 22.30
9	WP8540115		Clamp, Support   (Replaces: 8540115)				$ 7.30
10	W11665946		Clamp, Glass (2)   (Replaces: 8540114)				$ 21.90
11	W11230114		Screw   (Replaces: 8540513)				$ 13.94
12	WPW10137404		Frame, Door Front Assembly   (Replaces: W10137404)				$ 384.67
13	WPW10388315		Glass, Door   (Replaces: W10112078)				$ 345.28
14	WPW10138523		Frame, Door Back Support   (Replaces: W10138523)				$ 236.06
15	W10118967		Hinge, Door				$ 144.63
16	WP8181660		Screw   (Replaces: 8540284)				$ 7.30
17	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
18	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 11.49
19	WPW10112927		Pad, Door Handle   (Replaces: W10112927)				$ 8.31

    View Diagram in Separate Window       Print Part List
