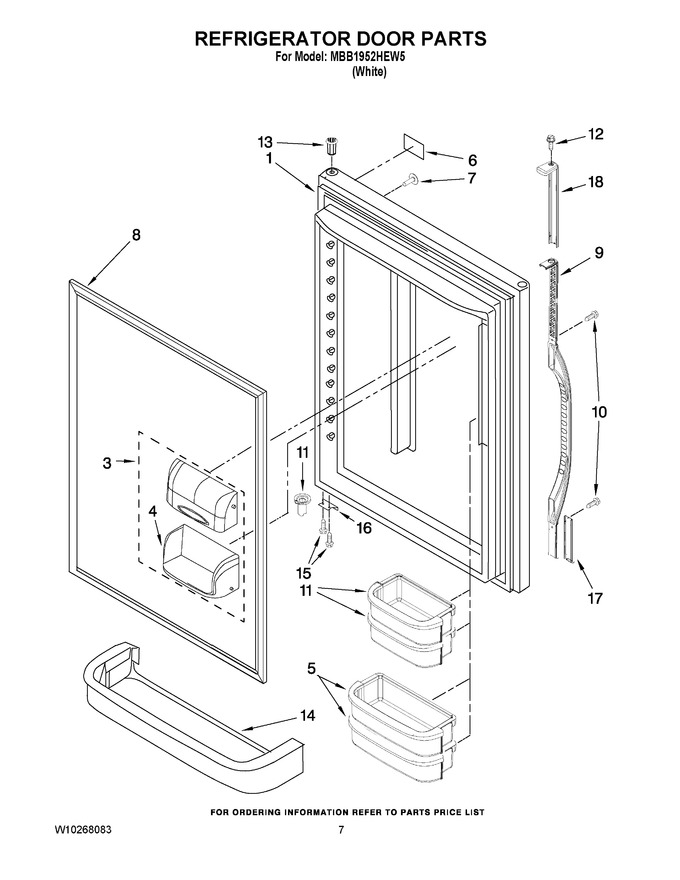

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658501W | Refrigerator Door (w/ Insulation) (white) |
|
- | |||||
| 3 | WP12744905 | Door, Compartment (Replaces: 12744905V) |
|
$ 108.56 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WP67001021 | Bucket (2) (medium) (Replaces: 12557204V) |
|
$ 80.90 | |||||
| 6 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 67.14 | ||||
| 7 | WP67001130 | Plug, Button (2) (white) (Replaces: 12246601) |
|
Immediately | $ 5.98 | ||||
| 8 | WPW10443309 | Gasket, Door Magnetic (white) (Replaces: W10164030) |
|
Immediately | $ 347.85 | ||||
| 9 | 12753101W | Handle, Door (white) |
|
- | |||||
| 10 | 60001022 | Handle, Door (screw) (Replaces: 12990508) |
|
$ 63.25 | |||||
| 11 | 67001141 | Bucket (2) Small (Replaces: 12557202) |
|
Immediately | $ 75.15 | ||||
| 12 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 13 | WP67004977 | Bushing (white) (Replaces: 10961006W) |
|
$ 7.81 | |||||
| 14 | 12690501 | Retainer, Door |
|
$ 41.75 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 16 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 65.99 | |||||
| 17 | 12660304W | Trim-handle-lower (white) |
|
- | |||||
| 18 | 12641702W | Trim-handle-upper (white) |
|
- |
