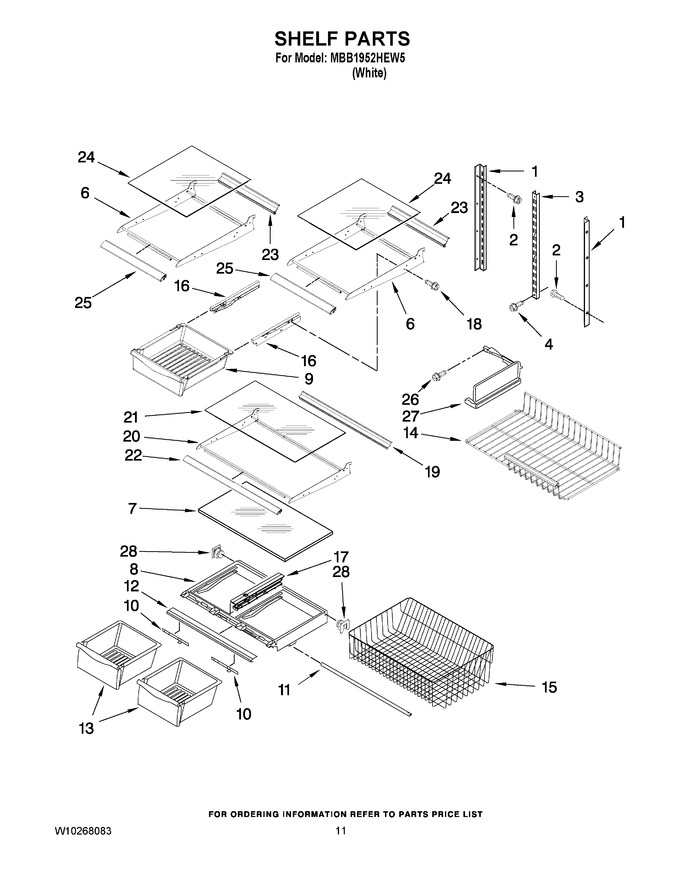

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12710606		Ladder, Side		Appelez-nous	-
2	67006425		Screw (6)   (Replaces: 12990513)			Immediately	$ 6.95
3	67001073		Ladder, Center   (Replaces: 12435807)				$ 54.18
4	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.13
6	10460116V		Frame, Deli		Appelez-nous	-
7	WP67006877		Glass, Crisper   (Replaces: 12204823)			Immediately	$ 209.75
8	WPW10671240		Frame, Crisper   (Replaces: 12530901SP)			Immediately	$ 138.10
9	WP67001308		Pan, Deli   (Replaces: 12656504SP)			Immediately	$ 138.10
10	WP67005864		Slide, Humidity   (Replaces: 12530805SP)			Immediately	$ 7.81
11	WP12227302WD		Brace, Crisperframe   (Replaces: 12227302WD)				$ 106.29
12	W10231339		Trim, Crisper				$ 63.41
13	W10833528		Pan, Crisper (2)   (Replaces: 12531305)			Immediately	$ 139.95
14	12694606		Shelf, Freezer		Appelez-nous	-
15	WP12754803		Basket, Freezer (lower)   (Replaces: W10143565)				$ 254.30
16	WP67001053		Glide, Deli (right)   (Replaces: 12656602SP)			Immediately	$ 9.24
16	WP67001054		Glide, Deli (left)   (Replaces: 12656601SP)			Immediately	$ 8.40
17	WPW10671238		Rail, Center   (Replaces: 12530701)			Immediately	$ 112.82
18	W11233072		Screw (4)   (Replaces: 12990302V)			Immediately	$ 14.02
19	10946012		Trim, Rear Full Shelf		Appelez-nous	-
20	10460116		Frame, Full Shelf		Appelez-nous	-
21	12204808		Glass, Shelf Shelf				$ 27.75
22	W10231328		Trim, Front Full Shelf		Appelez-nous	-
23	10946012V		Trim, Rear (2) Deli, Shelf		Appelez-nous	-
24	12204808V		Glass, Deli Shelf (2)		Appelez-nous	-
25	10459930V		Trim, Front Deli (2)		Appelez-nous	-
26	12990601		Screw		Appelez-nous	-
27	12693802		Divider-top Basket		Appelez-nous	-
28	10946012		Trim, Rear Shelf		Appelez-nous	-
