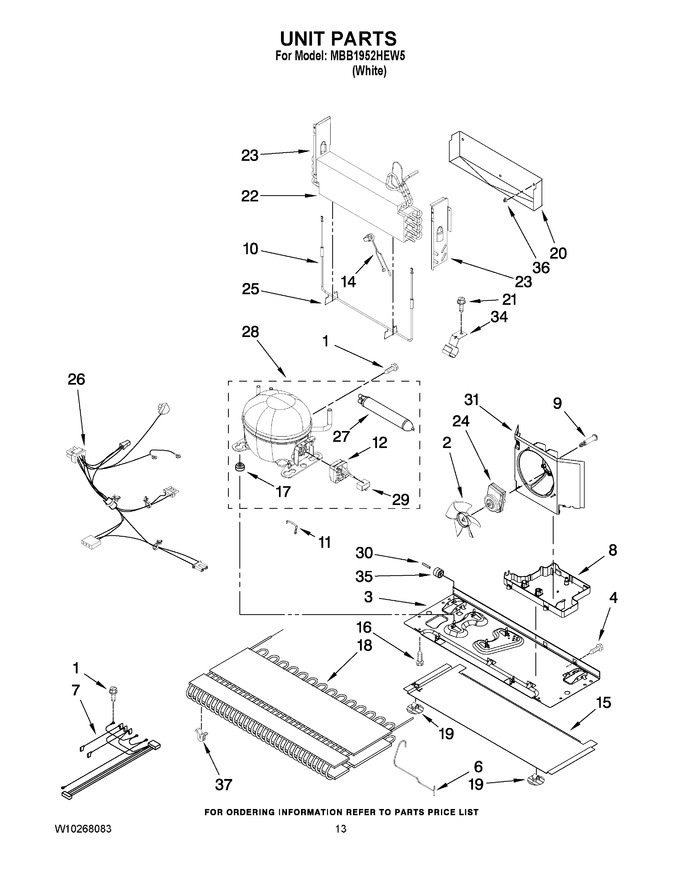

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W10480107		Basepan   (Replaces: W10210982)				$ 140.48
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
6	W10217744		Tube, Discharge				$ 53.81
7	W10224240		Harness, Evap Heater		Appelez-nous	-
8	WPW10655367		Pan, Drain   (Replaces: W10189185)			Immediately	$ 85.17
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 12.65
10	WP12729127		Evaporator Heater   (Replaces: 12729127)			Immediately	$ 109.73
11	W11092534		Strap, Bale   (Replaces: W10216075)				$ 11.32
12	WP2320150		Start Protect, Combo (production)   (Replaces: 2320150)			Immediately	$ 89.45
12	WPW10197426		Start Protect, Combo (service)   (Replaces: W10136414)				$ 154.34
14	WP67003426		Thermostat, Defrost   (Replaces: 12639302SP)			Immediately	$ 68.65
15	W10206336		Extension, Basepan				$ 72.75
16	12788119		Screw		Appelez-nous	-
17	WPW10169124		Grommet (4)   (Replaces: 10835903SP)			Immediately	$ 7.19
18	W10346423		Condenser   (Replaces: W10135028)				$ 227.90
19	W10206339		Fastener, Basepan Extension				$ 10.69
20	W11337775		Tray, Drip   (Replaces: 12225401WD)			Immediately	$ 94.35
21	WP33001882		Screw   (Replaces: 12990701)				$ 79.72
22	12726401		Evaporator		Appelez-nous	-
23	12225702		Dam (right Side)				$ 14.09
23	12225602		Dam (left) Side)				$ 14.66
24	W11613295		Motor, Fan   (Replaces: 12825101)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	WPW10234024		Harness, Unit   (Replaces: W10234024)				$ 293.67
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	W10130129		Compressor Kit (contains Items 12, 17, 27, & 29)		Appelez-nous	-
29	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
30	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.52
31	W11556315		Shroud   (Replaces: W10189184)				$ 79.66
34	10547003		Clip, Drier		Appelez-nous	-
35	WP67005149		Roller (2)   (Replaces: 12477102)			Immediately	$ 22.02
36	10623002		Clip, Evap (2)				$ 11.53
37	WPW10137529		Grommet (4)   (Replaces: W10137529)				$ 8.34
NI	SF5516		Valve, Access (5/16``)   (Replaces: 978026)			Immediately	$ 18.94
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
