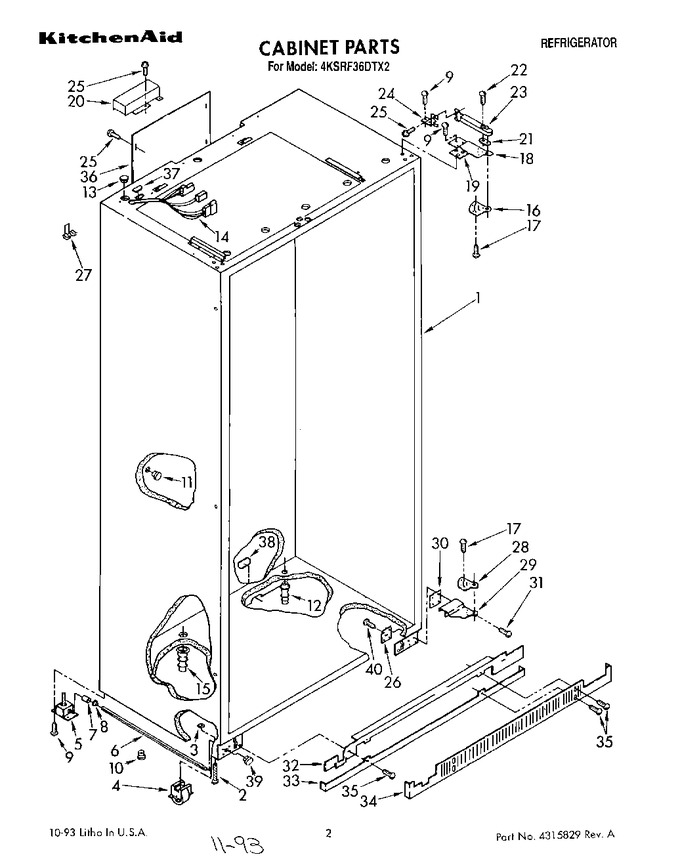

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 1112019 | Leveler, Front (2) |
|
- | |||||
| 3 | 1113249 | Retainer (2) |
|
- | |||||
| 4 | WPW10138054 | Roller, Front & Rear (4) (Replaces: 1112023) |
|
$ 43.18 | |||||
| 5 | 2005032 | Leveler, Adjustable (2) (Replaces: 1112695) |
|
Immediately | $ 190.54 | ||||
| 6 | 1112936 | Adjusting Rod (2) |
|
- | |||||
| 7 | 1113250 | Sleeve, Retainer (2) |
|
- | |||||
| 8 | 1112937 | Bushing, Rod (2) |
|
- | |||||
| 9 | 488115 | Screw, 10-32 X 5/8 |
|
- | |||||
| 9 | 489266 | Screw (repair) |
|
- | |||||
| 10 | 1112939 | Hole Plug, Leveler |
|
- | |||||
| 11 | 1112849 | Cap, Grommet |
|
- | |||||
| 12 | 1112970 | Grommet, Water Tube |
|
- | |||||
| 13 | 1113122 | Grommet, Wiring |
|
- | |||||
| 14 | 1112769 | Wiring Harness, Cabinet |
|
- | |||||
| 15 | 1112848 | Drain Fitting |
|
- | |||||
| 16 | 1113214 | Gap, Cover Assembly (top) (right Side) |
|
- | |||||
| 16 | 1113215 | Gap, Cover Assembly (top) (left Side) |
|
- | |||||
| 17 | 1112906 | Shoulder, Screw |
|
- | |||||
| 18 | 1112912 | Hinge (top) (right Side) |
|
- | |||||
| 18 | 1112901 | Hinge (top) (left Side) |
|
- | |||||
| 19 | 1112988 | Shim, Hinge Top (4) |
|
- | |||||
| 20 | 1112805 | Guard, Wiring |
|
- | |||||
| 21 | 1112907 | Door Closer, Fixed Cam |
|
- | |||||
| 22 | WP486579 | Screw, 8-32 X 5/16 (Replaces: 487818) |
|
$ 7.34 | |||||
| 23 | 1112992 | Door Closer Assembly (2) |
|
- | |||||
| 24 | 1112948 | Bracket, Door Closer (right Side) |
|
- | |||||
| 24 | 1112947 | Bracket, Door Closer (left Side) |
|
- | |||||
| 25 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 25 | WP681414 | Screw (repair) (Replaces: 488908) |
|
Immediately | $ 7.85 | ||||
| 26 | 1112973 | Tap Plate, Hinge Butt (2) |
|
- | |||||
| 27 | 1113227 | Fastener (3) |
|
- | |||||
| 28 | 1113217 | Gap, Cover Assembly (bottom) (left Side) |
|
- | |||||
| 28 | 1113216 | Gap, Cover Assembly (bottom) (right Side) |
|
- | |||||
| 29 | 1112919 | Hinge (bottom) (left Side) |
|
- | |||||
| 29 | 1112923 | Hinge (bottom) (right Side) |
|
- | |||||
| 30 | 1112942 | Shim, Hinge Bottom (4) |
|
- | |||||
| 31 | 489237 | Screw, 1/4-28 X 3/4 |
|
- | |||||
| 32 | 1112830 | Grille Base, Top |
|
- | |||||
| 33 | 1113150 | Grille Base, Bottom |
|
- | |||||
| 34 | 1113260 | Grille Base, Front |
|
- | |||||
| 35 | 489238 | Screw (6) |
|
- | |||||
| 36 | 1112835 | Cover, Rear |
|
- | |||||
| 37 | 1113123 | Grommet, Wiring |
|
- | |||||
| 38 | 1113079 | Grommet, Flexible |
|
- | |||||
| 39 | 1112926 | Grommet, Tube |
|
- | |||||
| 40 | WP488163 | Screw, 8 X 3/4 (2) (Replaces: 488248) |
|
$ 7.54 |
