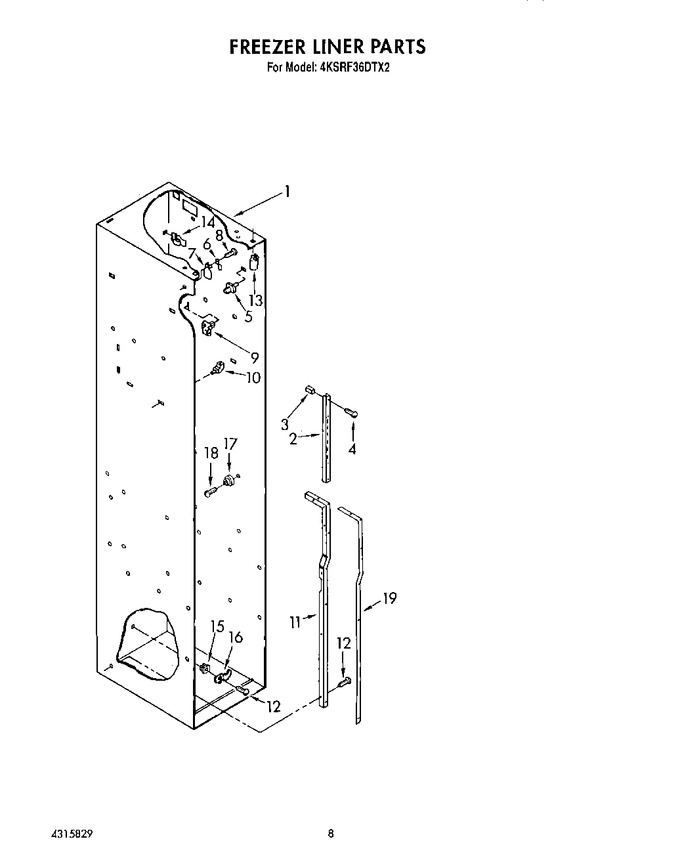

04 - Freezer Liner


05 - Ice Container


06 - Refrigerator Control Panel


07 - Freezer Control Panel


08 - Refrigerator Shelf


09 - Freezer Shelf


10 - Refrigerator Door, Lit/optional


11 - Freezer Door


12 - Dispenser And Front


13 - Upper Unit


14 - Lower Unit And Tube


15 - Air Flow And Reservoir


16 - Icemaker


17 - Top Grille And Unit Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1112272		Ladder, Shelf (2)		Appelez-nous	-
3	1112271		Spacer, Ladder (4)		Appelez-nous	-
4	WP489174		Screw (4)   (Replaces: 489193)				$ 7.30
5	521516		Stud, Shelf (4)		Appelez-nous	-
6	538533		Support Clip, Icemaker (2)		Appelez-nous	-
7	538532		Grommet, Screw (2)		Appelez-nous	-
8	WP681414		Screw, 10-12 X 3/8 (2)   (Replaces: 488552)			Immediately	$ 8.47
9	992720		Stud, Support (4)		Appelez-nous	-
10	836374		Stud, Retainer (4)		Appelez-nous	-
11	1112842		Rail, Evaporator Cover (right Side)		Appelez-nous	-
11	1112841		Rail, Evaporator Cover (left Side)		Appelez-nous	-
12	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
12	WP681414		Screw (repair)   (Replaces: 488908)			Immediately	$ 8.47
13	1112591		Spacer, Control Panel (3)		Appelez-nous	-
14	2215823		Clip, Air Duct (4)   (Replaces: 842534)				$ 10.94
15	842339		Grommet (15)		Appelez-nous	-
16	1112260		Support,evaporator		Appelez-nous	-
17	658944		Stud, Shelf (8)		Appelez-nous	-
18	487559		Screw, 8-15 X 1-1/4 (8)		Appelez-nous	-
19	1112843		Gasket, Evaporator Cover (2)		Appelez-nous	-
