SELECT A DIAGRAM
New Model Search:

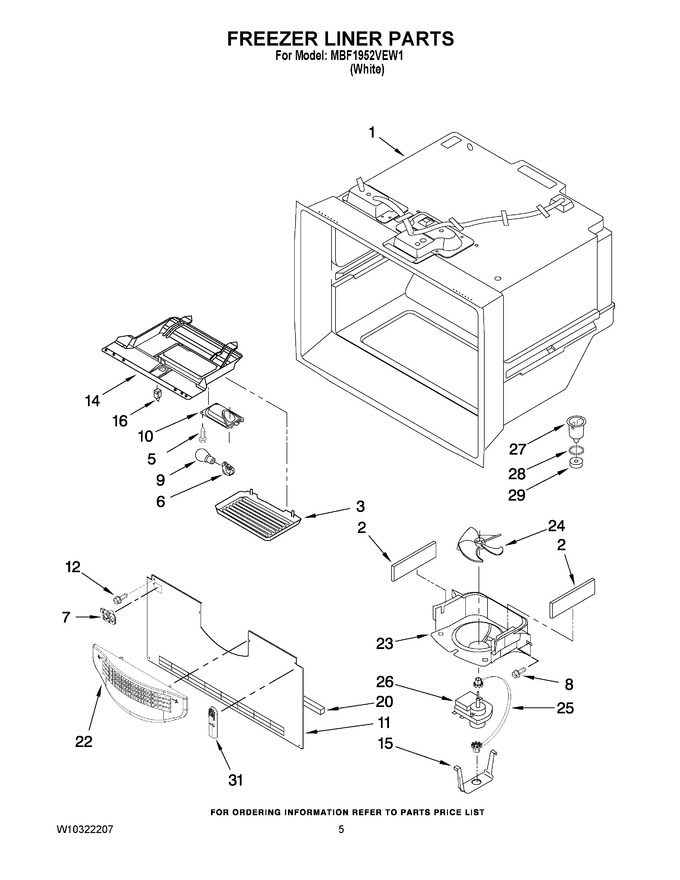

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Asevice Able Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (2) (includes Rh & Lh) (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | 12804901 | Cover-fz Light |
|
- | |||||
| 5 | WP90767 | Screw (Replaces: 12991603V) |
|
Immediately | $ 7.82 | ||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.21 | ||||
| 7 | W11448709 | Guide- Fill Tube (Replaces: 12932103) |
|
$ 24.64 | |||||
| 8 | WP98165 | Screw (8) (Replaces: 12990504) |
|
$ 8.00 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: 2255743N) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Foil, Housing (Replaces: 12476401V) |
|
$ 85.82 | |||||
| 11 | WPW10308414 | Cover, Evaporator (Replaces: W10308414) |
|
$ 234.80 | |||||
| 12 | WP489349 | Screw (7) (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 14 | 12805001 | Module, Light |
|
- | |||||
| 15 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 20 | W11451451 | Gasket, Bottom (Replaces: A3189397) |
|
$ 12.41 | |||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Fan, Evaporator (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet (2) |
|
$ 48.38 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 78.75 | ||||
| 27 | W10815413 | Funnel, Drain (incl. No. 28 & 29) (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 |
