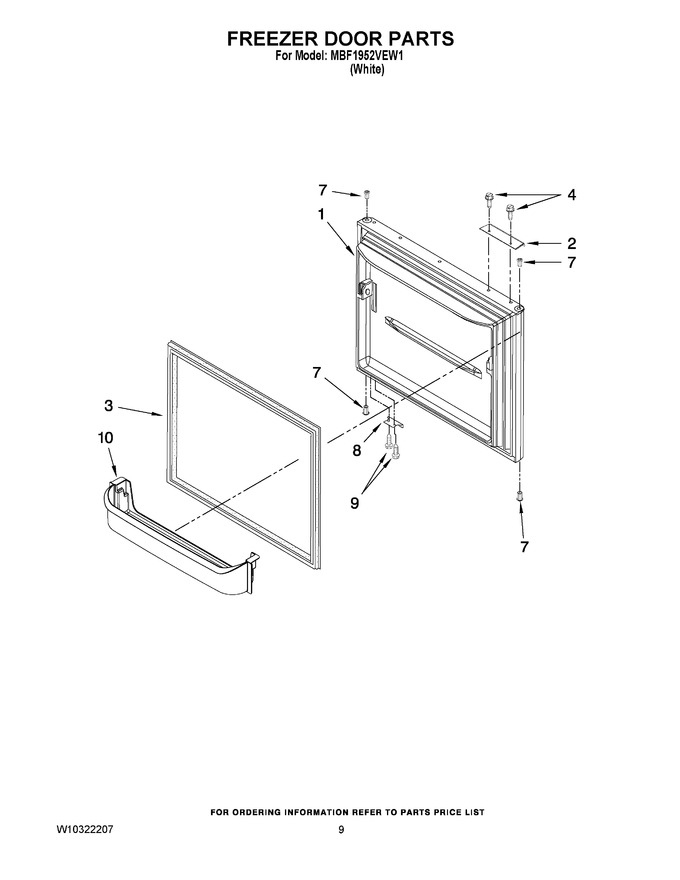

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13024224WQ | Door, Freezer (white) |
|
$ 445.07 | |||||
| 2 | WP67005140 | Handle, Door (white) (Replaces: 12610803W) |
|
Immediately | $ 155.76 | ||||
| 3 | WPW10443311 | Gasket, Door (white) (Replaces: W10164032) |
|
Immediately | $ 255.76 | ||||
| 4 | WPW10348409 | Screw, Handle (Replaces: 12990301) |
|
Immediately | $ 8.20 | ||||
| 7 | WP67004977 | Bushing (4) (white) (Replaces: 10961006W) |
|
$ 8.20 | |||||
| 8 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | 67003397 | Retainer, (door Shelf) (Replaces: 12737501) |
|
$ 109.61 |
