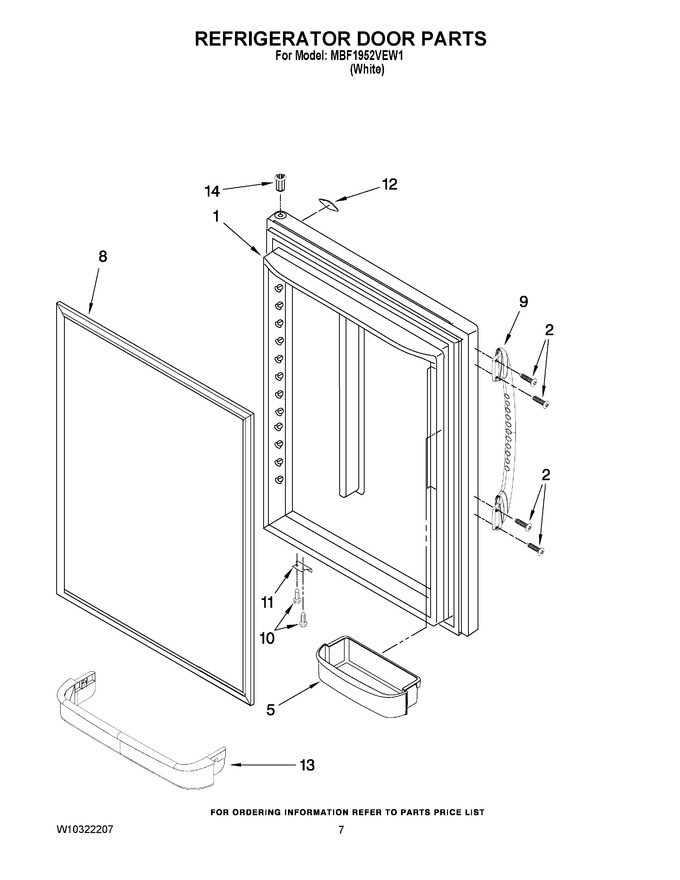

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658529WQ | Door, Refrigerator (white) |
|
$ 439.53 | |||||
| 2 | 12990203SP | Screw, Handle |
|
- | |||||
| 5 | WP67001021 | Bucket, Door (medium (2)) (Replaces: 12557204V) |
|
$ 80.90 | |||||
| 5 | 67001141 | Bucket, Door (small (2)) (Replaces: 12557202) |
|
Immediately | $ 75.15 | ||||
| 8 | WPW10443309 | Gasket, Door (white) (Replaces: W10164030) |
|
Immediately | $ 347.85 | ||||
| 9 | WP12781004W | Handle, Door (white) (Replaces: 12781004W) |
|
$ 183.57 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 65.99 | |||||
| 12 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 67.14 | ||||
| 13 | 12690501 | Retainer, Ref Door |
|
$ 41.75 | |||||
| 14 | WP67004977 | Bushing (2) (white) (Replaces: 10961006W) |
|
$ 7.81 |
