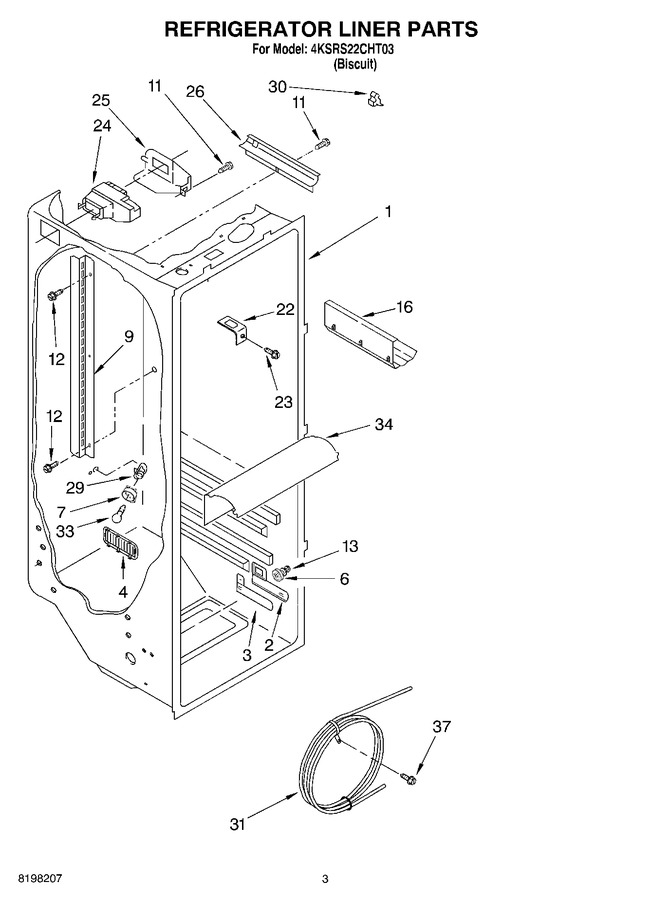

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 95.84
3	2182757		Slide Meat Pan Control				$ 75.15
4	2182147		Louver		Appelez-nous	-
6	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
7	WP2175210		Socket, Light   (Replaces: 2169193)				$ 86.74
9	2206270		Ladder, Shelf (2)		Appelez-nous	-
11	W10759522		Screw (2)   (Replaces: 486298)				$ 8.24
12	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
13	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
16	W10777924		Rack, Wine & Egg   (Replaces: 2179375)				$ 24.78
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
23	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
24	WPW10129864		Air Diffuser Assembly   (Replaces: 2209752)				$ 361.52
25	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 138.15
26	2150331		Cover, Conduit				$ 25.62
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 115.67
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
31	WP2256126		Reservoir   (Replaces: 2217199)				$ 177.29
33	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
34	2209769		Light Lens		Appelez-nous	-
37	488280		Screw (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
