SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Control Parts


04 - Refrigerator Shelf Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

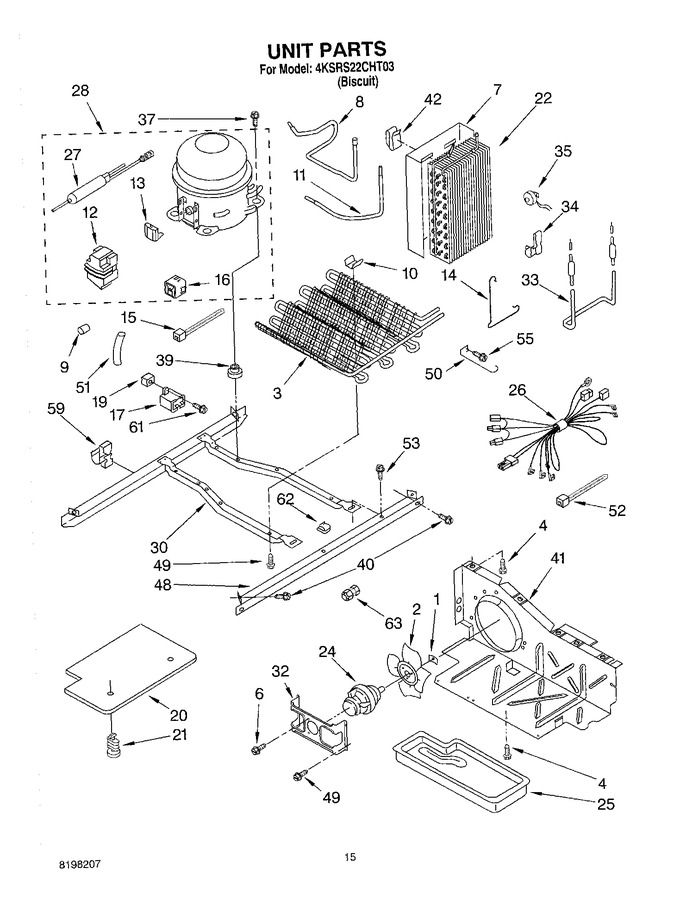

09 - Unit Parts


10 - Freezer Liner Parts


11 - Air Flow Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	2190685		Fan, Blade				$ 52.00
3	2204484		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
6	681390		Screw   (Replaces: 489099)				$ 13.71
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
8	2205764		Tube Suction				$ 89.18
9	WP2158826		Dampner   (Replaces: 2158826)				$ 1.82
10	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
11	2255798		Tube, Condenser To Heat Loop		Appelez-nous	-
12	WP61002138		Cover (service Compressor Only)   (Replaces: 4387959)				$ 9.21
13	4388786		Overload ((service, Includes Relay))   (Replaces: 4388101)		Appelez-nous	-
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	WPW10339879		Wire Tie   (Replaces: 2221306)				$ 8.30
16	2188508		Start Device, Combination (start Relay And Overload) For Production Compressor Only		Appelez-nous	-
17	WP2201147		Capacitor (service)   (Replaces: 4387874)				$ 135.42
17	WP2201147		Capacitor (production)   (Replaces: 2201147)				$ 135.42
19	509812		Screw Grommet		Appelez-nous	-
20	2200465		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 11.26
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 356.84
24	8201703		Motor, Fan   (Replaces: 2188539)				$ 371.70
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2187405		Harness, Unit		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 57.13
28	W10183407		Compressor (includes Items 12, 13, 17 & 27) (also Order 876765 Tube Kit)   (Replaces: 2187162)				$ 435.61
30	2304903		Unit Mounting Frame   (Replaces: 2160501)				$ 244.68
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.93
33	WP2313330		Heater, Defrost   (Replaces: 2188176)				$ 163.13
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	W11661574		Screw   (Replaces: 489473)				$ 14.29
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
39	W11661108		Grommet (4) (production)   (Replaces: 2183042)				$ 15.21
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 101.20
42	2155547		Clip, Heat		Appelez-nous	-
48	2149718		Unit Mounting Rail		Appelez-nous	-
49	W11544659		Screw   (Replaces: 8281232)				$ 14.35
50	1105612		Guard, Fan				$ 42.61
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
52	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 8.30
53	WP489427		Screw   (Replaces: 489427)				$ 7.84
55	WP489478		Screw   (Replaces: 489478)				$ 8.18
59	2208280		Clip, Wire & Tube		Appelez-nous	-
61	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
62	934011		Clip, Tube (3)		Appelez-nous	-
63	N/A		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-
63	978030		Valve, Access (3/4``)				$ 137.25
63	876764		Valve, Access(3/16``)			Immediately	$ 95.92
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
63	WP4373559		Connector, Water   (Replaces: 2209709)				$ 81.22
63	978026		Valve, Access (5/16``)			Immediately	$ 134.49
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85

    View Diagram in Separate Window       Print Part List
