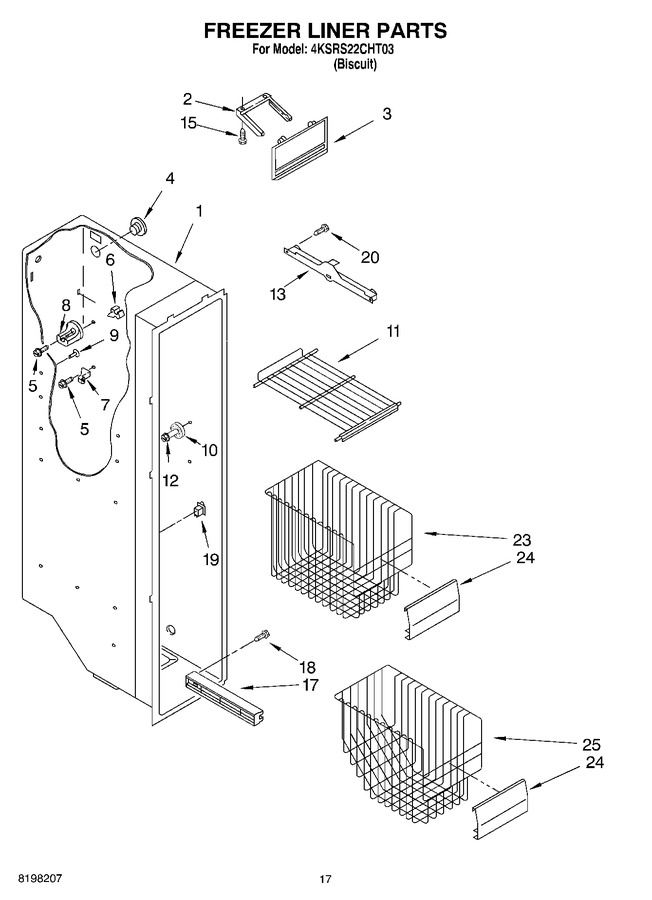

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 66.58
4	940014		Hole Plug				$ 18.33
5	W10142289		Screw   (Replaces: 3400893)				$ 9.15
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud (4)		Appelez-nous	-
8	2196207		Stud, Rear				$ 7.61
9	2176134		Grommet (4)				$ 5.83
10	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
11	WP2174249K		Shelf (2)   (Replaces: 2174249)				$ 211.19
12	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
13	W10845585		Slide, Ice Container (left Side)   (Replaces: 1119237)				$ 132.77
13	W10845583		Slide, Ice Container (right Side)   (Replaces: 1119293)				$ 123.92
15	WP489478		Screw   (Replaces: 489478)				$ 7.75
17	2181760		Shelf Track (right Side (2))		Appelez-nous	-
17	2181759		Shelf Track (left Side (2))		Appelez-nous	-
18	W10759522		Screw   (Replaces: 486298)				$ 7.75
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	718257		Screw   (Replaces: 489100)		Appelez-nous	-
23	2181761		Basket, Upper		Appelez-nous	-
24	2171768		Front, Basket		Appelez-nous	-
25	2181762		Basket, Lower		Appelez-nous	-
