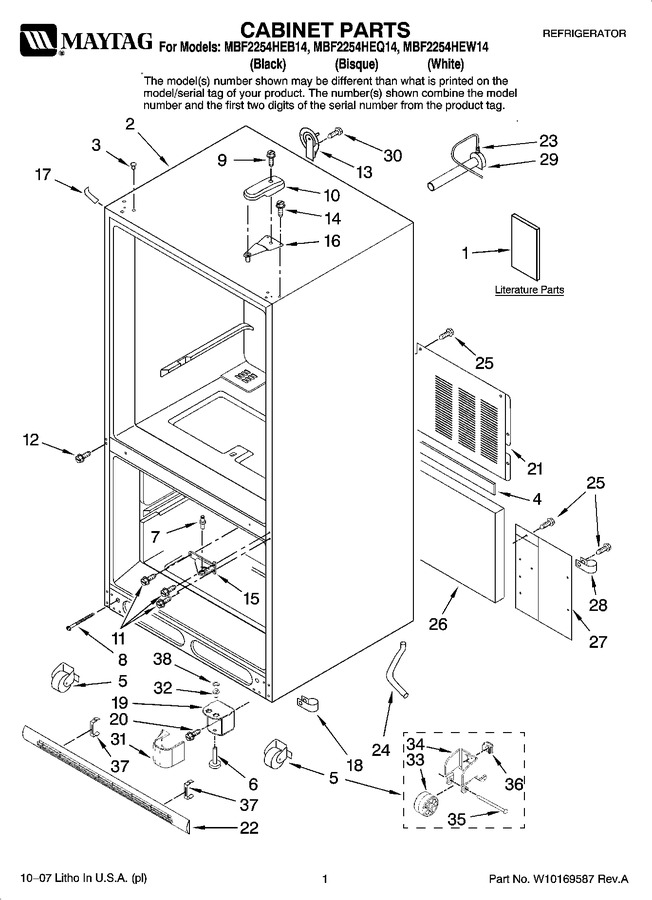

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10165418		Tech Sheet		Appelez-nous	-
1	W10123884		Energy Guide		Appelez-nous	-
1	W10137641		Use & Care Guide		Appelez-nous	-
3	M0310738		Plug, Button (3) (bisque)		Appelez-nous	-
3	WP67001130		Plug, Button (3) White   (Replaces: M0310729)			Immediately	$ 5.98
3	WP12246608		Plug, Button (3) (black)   (Replaces: M0310731)			Immediately	$ 7.76
4	B5759649		Gasket		Appelez-nous	-
5	67006118		Roller Assy. (2)		Appelez-nous	-
6	W11177593		Foot Brake   (Replaces: 67003868)				$ 11.60
7	WP67006744		Pin, Center Hinge   (Replaces: 67006744)				$ 8.27
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 67006611)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	67001012		Cover Hinge (black)				$ 47.34
10	67001013		Cover, Hinge (bisque)		Appelez-nous	-
10	67001014		Cover Hinge (white)				$ 21.28
11	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 7.88
12	WP98165		Screw   (Replaces: 67006473)				$ 8.00
13	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
14	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 7.88
15	W11689473		Hinge, Center (white)   (Replaces: 67006960)				$ 66.47
15	WP12607104ED		Hinge, Center (black)   (Replaces: 67007043)				$ 152.73
16	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 44.89
17	67003484		Cover, Corner (white)				$ 20.40
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
17	67003486		Cover, Corner (bisque)		Appelez-nous	-
18	67001067		Clip, Drain				$ 9.20
19	67001069		Hinge, Bottom (white)		Appelez-nous	-
19	67001068		Hinge, Bottom (black)		Appelez-nous	-
20	67006564		Screw (4)			Immediately	$ 7.69
21	67006101		Cover, Unit				$ 76.68
22	67002223		Grille Assembly (includes Clips) (white)		Appelez-nous	-
22	67002224		Grille Assembly (includes Clips) (black)				$ 38.59
22	67002390		Grille Assembly (includes Clips) (bisque)				$ 35.68
23	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
24	67001066		Tube, Drain				$ 55.82
25	67006425		Screw			Immediately	$ 6.95
26	67003796		Fiber, Acoustic				$ 19.27
27	67001097		Cover, Water Valve		Appelez-nous	-
28	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
29	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 114.15
30	WP98165		Screw   (Replaces: 67006287)				$ 8.00
31	12561901C		Cover, Hinge (bisque)		Appelez-nous	-
31	12561901B		Cover, Hinge (black)				$ 11.62
31	12561901W		Cover, Hinge White				$ 6.37
32	67007018		Pin, Bottom Hinge			Immediately	$ 8.21
33	WP10450603		Roller   (Replaces: 67005127)				$ 7.88
34	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 50.57
35	M1205302		Rivet				$ 5.85
36	M0286708		Nut, Speed				$ 45.57
37	12627302		Clip, Toe Grille				$ 5.84
38	WPM0274062		Shim (black)   (Replaces: M0274062)			Immediately	$ 24.43
38	WPM0274057		Shim (white)   (Replaces: M0274057)			Immediately	$ 8.00
