SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts

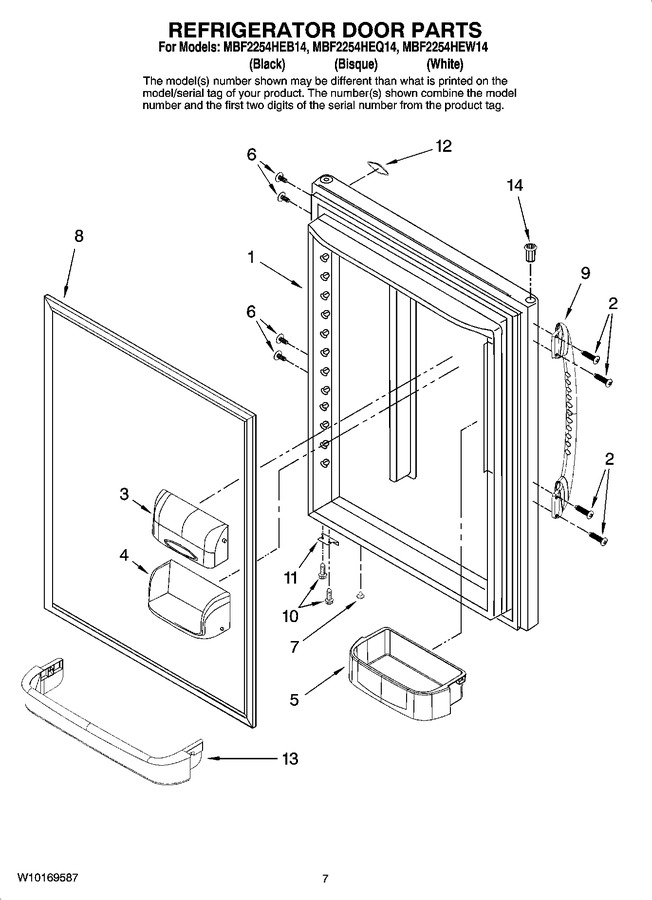

05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004329		Door, Refrigerator (black)		Appelez-nous	-
1	67004361		Door, Refrigerator (bisque)		Appelez-nous	-
1	67004363		Door, Refrigerator (white)		Appelez-nous	-
2	67006668		Screw (4) (white)				$ 12.83
2	67006806		Screw (4) (black)				$ 14.02
2	67004707		Screw (4) (bisque)				$ 18.30
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 82.67
4	67004040		Tray, Dairy				$ 95.99
5	67004040		Bucket, Medium (4)				$ 95.99
6	67007166		Screw (4) (black)		Appelez-nous	-
6	12991103		Screw (4) (white)				$ 12.03
6	98008169		Screw (4) (bisque)   (Replaces: 12991104)		Appelez-nous	-
7	10712401		Plug, Button (2) (white)				$ 7.79
7	67004838		Plug, Button (2) (black)				$ 11.21
8	W10443313		Gasket, Door (white)   (Replaces: W10130893)				$ 361.01
8	WPW10436248		Gasket, Door (black)   (Replaces: W10131327)				$ 286.97
9	67006120		Handle, Door (black)		Appelez-nous	-
9	67006887		Handle, Door (bisque)		Appelez-nous	-
9	WP12781004W		Handle, Door (white)   (Replaces: 67006119)				$ 183.57
10	WP98165		Screw   (Replaces: 67006287)				$ 8.57
11	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 69.29
11	67003781		Stop, Door (bisque)				$ 83.12
11	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
12	2324038		Nameplate   (Replaces: 67006439)				$ 71.59
13	67001748		Retainer, Ref Door		Appelez-nous	-
14	67004978		Bushing (4) (black)				$ 22.10
14	WP67004977		Bushing (4) (white)   (Replaces: 67004977)				$ 8.20

    View Diagram in Separate Window       Print Part List
