SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts

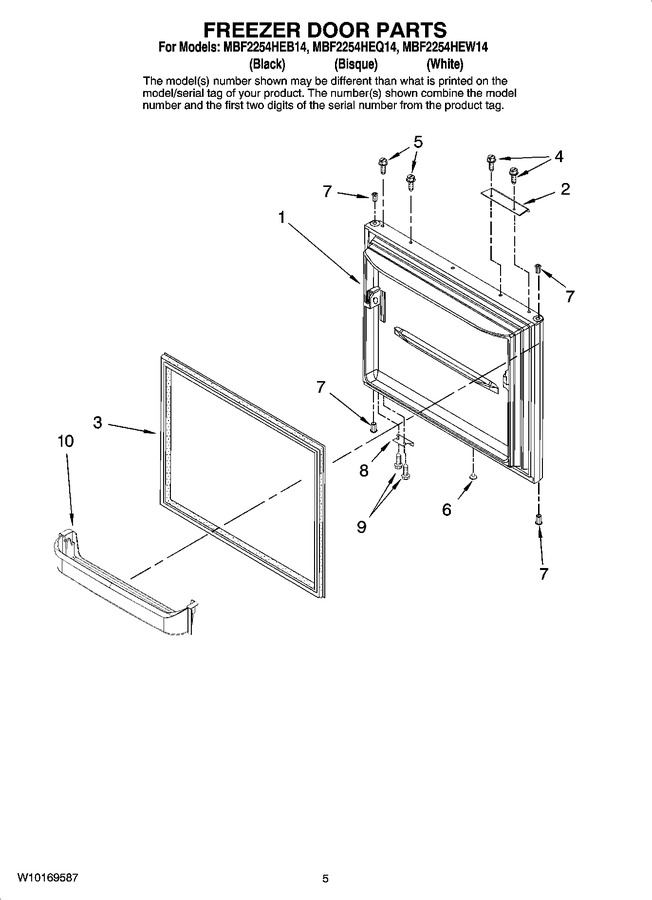

03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10168717		Door, Freezer (white)		Appelez-nous	-
1	W10168719		Door, Freezer (black)		Appelez-nous	-
1	W10168718		Door, Freezer (bisque)		Appelez-nous	-
2	67005125		Handle, Door (black)				$ 142.03
2	WP67005141		Handle, Door (bisque)   (Replaces: 67005141)				$ 146.21
2	WP67005140		Handle, Door (white)   (Replaces: 67005140)			Immediately	$ 148.34
3	WPW10436250		Gasket, Door (black)   (Replaces: W10130587)			Immediately	$ 347.99
3	W10443315		Gasket, Door (white)   (Replaces: W10130894)				$ 193.98
4	WPW10348409		Screw, Handle   (Replaces: 67006831)			Immediately	$ 7.76
5	67007166		Screw (black)		Appelez-nous	-
5	98008169		Screw (bisque)   (Replaces: 12991104)		Appelez-nous	-
5	12991103		Screw (white)				$ 12.03
6	67004838		Plug, Button (2) (black)				$ 10.68
6	10712401		Plug, Button (2) (white)				$ 7.79
7	67004978		Bushing (black)				$ 21.05
7	WP67004977		Bushing (white)   (Replaces: 67004977)				$ 7.81
8	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 65.99
8	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.05
8	67003781		Stop, Door (bisque)				$ 79.16
9	WP98165		Screw   (Replaces: 67006287)				$ 8.00
10	67003934		Retainer, Frz Door				$ 22.73
