Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10142800 Tech Sheet Appelez-nous -
1 W10199707 Instructions, Installation Appelez-nous -
1 W10298361 Energy Guide Appelez-nous -
1 W10199658 Guide, Use & Care English/french Appelez-nous -
2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 130.98

2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 130.98

3 8268983 Stiffener, Door Special Order $ 38.77

4 W10199768 Panel Front (white) Special Order $ 138.50

4 W10199769 Panel Front (stainless) Special Order $ 171.49

4 W10199762 Panel Front (black) Special Order $ 146.88

5 W11763736 Access Panel (black)   (Replaces: 8573255) In-Stock Immediately $ 38.79

5 WPW10441007 Access Panel (white)   (Replaces: 8573256) Special Order $ 162.80

6 WP8269016 Clip, Grounding   (Replaces: 8269016) Special Order $ 10.68

7 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 91.65

8 W10799406 Toe Panel (includes Item 9) (white)   (Replaces: W10205337) Special Order $ 159.12

8 W10871196 Toe Panel (includes Item 9) (black)   (Replaces: W10205336) Special Order $ 165.75

9 W10831329 Insulation, Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 40.71

10 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 7.75

10 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 7.53

11 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.86

12 WP3400071 Screw   (Replaces: 3400071) Special Order $ 7.82

13 W10199637 Handle (black) Special Order $ 75.14

13 W10199639 Handle (chrome) Special Order $ 101.41

13 W10324627 Handle (white)   (Replaces: W10199635) Special Order $ 182.84

14 WP8564951 Stud, Mounting   (Replaces: 8564951) In-Stock Immediately $ 18.41

15 W10142904 Plate, Backing Special Order $ 50.57

16 W10123421 Screw Special Order $ 12.83


    View Diagram in Separate Window     Print Icon   Print Part List

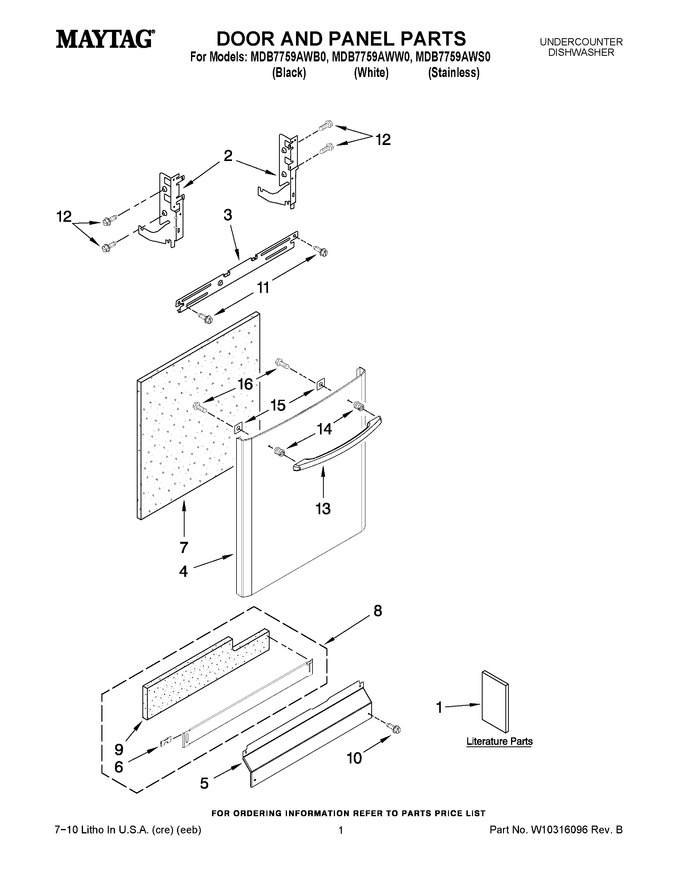

Diagram for MDB7759AWB0
