SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts

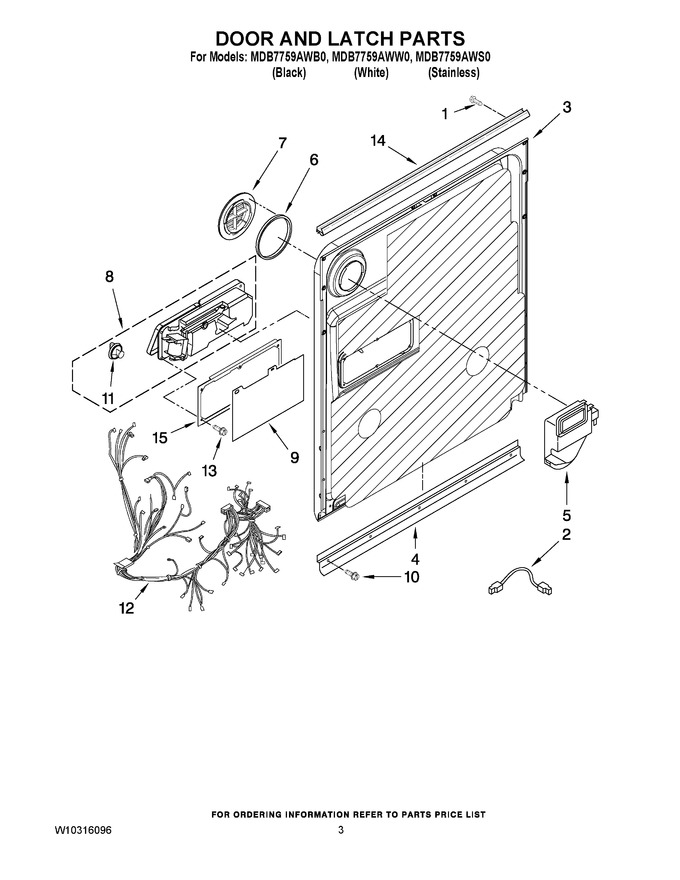

03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 7.76
2	8545608		Harness, Vent Motor				$ 152.37
3	W10056249		Inner Door Mastic Assembly				$ 173.12
4	WP8268937		Inlet, Air   (Replaces: 8268937)			Immediately	$ 58.29
5	WP8572611		Vent Assembly   (Replaces: 8572611)				$ 200.49
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	WP8545536		Deflector, Vent (also Order Item 6)   (Replaces: 8545536)				$ 79.32
8	WPW10199696		Dispenser, Assembly   (Replaces: W10199696)				$ 174.06
9	WP8531865		Shield, Dispenser   (Replaces: 8531865)				$ 107.76
10	W11631670		Screw   (Replaces: 8281217)				$ 14.02
11	WPW10199683		Cap, Rinse Aid   (Replaces: W10199683)				$ 26.79
12	WPW10413098		Wiring Harness Main   (Replaces: W10078201)				$ 284.79
13	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 7.64
14	WP8535660		Seal, Console/door   (Replaces: 8535660)				$ 177.15
15	WPW10462232		Bracket, Dispenser   (Replaces: 8535637)				$ 36.04

    View Diagram in Separate Window       Print Part List
