Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10213822 Tub Assembly (includes Heater Assembly) Appelez-nous -
2 W11384788 Strain Relief   (Replaces: 8573061) Special Order $ 21.51

3 W11196317 Door Seal   (Replaces: W10112096) In-Stock Immediately $ 94.26

4 W10795980 Plug Tub   (Replaces: W10082838) In-Stock Immediately $ 14.34

5 WP9743002 Gasket, Bracket Mounting   (Replaces: 9743002) In-Stock Immediately $ 9.56

6 W10864081 Seal, Cabinet   (Replaces: 8269110) In-Stock Immediately $ 84.31

7 WPW10348407 Screw   (Replaces: 3400072) Special Order $ 7.69

8 WPW10084086 Door, Balance Assembly   (Replaces: W10084086) In-Stock Immediately $ 31.45

9 W10077370 Strike, Latch Appelez-nous -
10 WP3378128 Washer, Pronged Undercounter   (Replaces: 3378128) Special Order $ 9.03

11 WP3400074 Screw   (Replaces: 3400074) Special Order $ 7.19

12 3370389 Screw Special Order $ 5.70

13 WP8268977 Wheel Leg   (Replaces: 8268977) Special Order $ 14.47

14 8193716 Leveler, Leg   (Replaces: 8524584) In-Stock Immediately $ 84.72

15 WP3400014 Screw   (Replaces: 3400014) Special Order $ 7.75

16 WP8270020 Spring, Door Balance   (Replaces: 8270020) In-Stock Immediately $ 34.94

17 WP8270019 Wheel & Mount Assembly (also Order Item 6)   (Replaces: 8270019) In-Stock Immediately $ 9.04

18 WP3400892 Screw,   (Replaces: 3400892) Special Order $ 7.75

19 W11779375 Cover, Terminal Box   (Replaces: 8268991) Special Order $ 26.79

20 8194001 Cable, Door Balance   (Replaces: W10158291) In-Stock Immediately $ 41.06

21 WP304666 Retainer, Push   (Replaces: 304666) Special Order $ 28.05

22 W10185368 Bracket, Hinge (right) Appelez-nous -
23 W11086533 Shield, Sound Tub   (Replaces: 8573240) In-Stock Immediately $ 31.30

24 9742648 Bracket, Thermostat Special Order $ 51.51

25 WP661566 Thermostat   (Replaces: 661566) In-Stock Immediately $ 31.28


    View Diagram in Separate Window     Print Icon   Print Part List

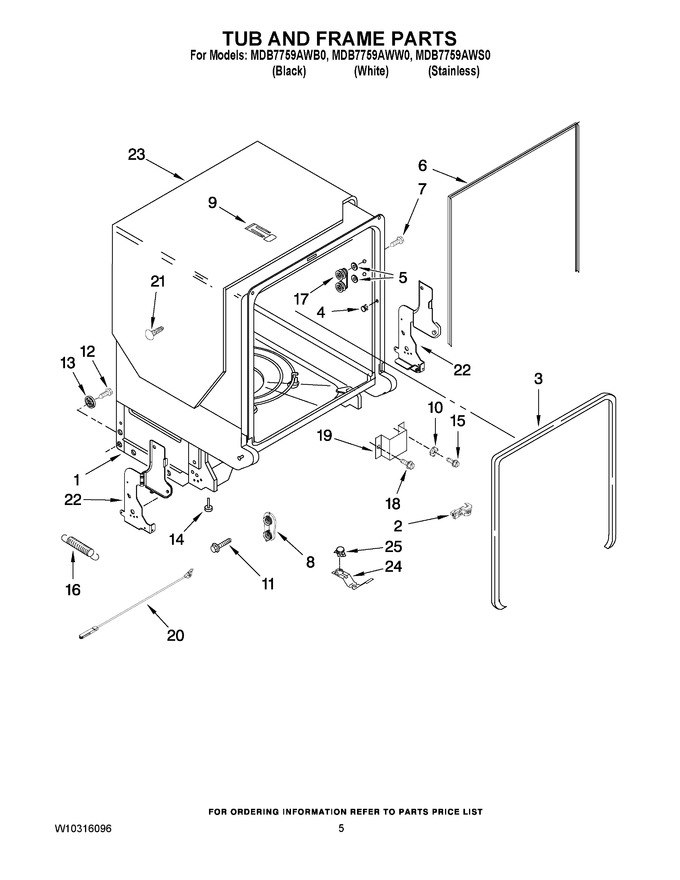

Diagram for MDB7759AWB0
