SELECT A DIAGRAM

02 - Motor And Drive , Lit/optional


03 - Frame


04 - Powerscrew And Ram


05 - Container


06 - Panel And Control


07 - Accessories

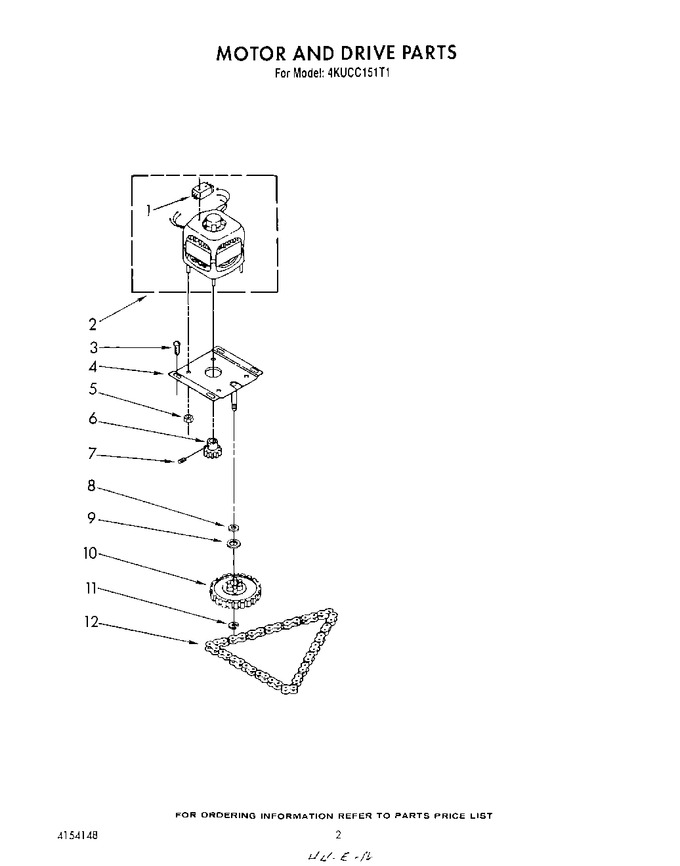

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10439651		Switch, Motor   (Replaces: 777971)				$ 326.85
2	W10439651		Motor, Drive (includes No. 1)   (Replaces: 780359)				$ 326.85
3	776593		Screw. 1/4-20 X 1/2 (4)		Appelez-nous	-
4	776327		Plate, Drive Mount		Appelez-nous	-
5	WP776338		Locknut, 10-32 (4)   (Replaces: 776338)				$ 19.35
6	882699		Gear, Drive   (Replaces: 4149667)				$ 123.55
7	WP454512		Pin, Slotted Spring   (Replaces: 454512)				$ 7.54
8	776035		Washer, Wave				$ 14.05
9	W11214485		Washer, Thrust   (Replaces: 297462)				$ 13.56
10	882699		Gear, Driven   (Replaces: 777124)				$ 123.55
11	WP776036		Clip, Ring   (Replaces: 776036)				$ 7.43
12	780477		Chain, Drive				$ 217.07
12	4151552		Harness, Wiring		Appelez-nous	-
	LIT4151912		Sheet, Tech (english)		Appelez-nous	-
	LIT4154148		List, Repair Parts		Appelez-nous	-
	LIT4152667		Instructions, Installation (french)		Appelez-nous	-
	LIT4151913		Instructions, Installation (english)		Appelez-nous	-
	LIT4153302		Guide, Use And Care		Appelez-nous	-
	LIT4152664		Guide, Use And Care (bi-lingual)		Appelez-nous	-
	LIT4152666		Sheet, Tech (french)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
