SELECT A DIAGRAM

02 - Motor And Drive , Lit/optional


03 - Frame


04 - Powerscrew And Ram


05 - Container


06 - Panel And Control


07 - Accessories

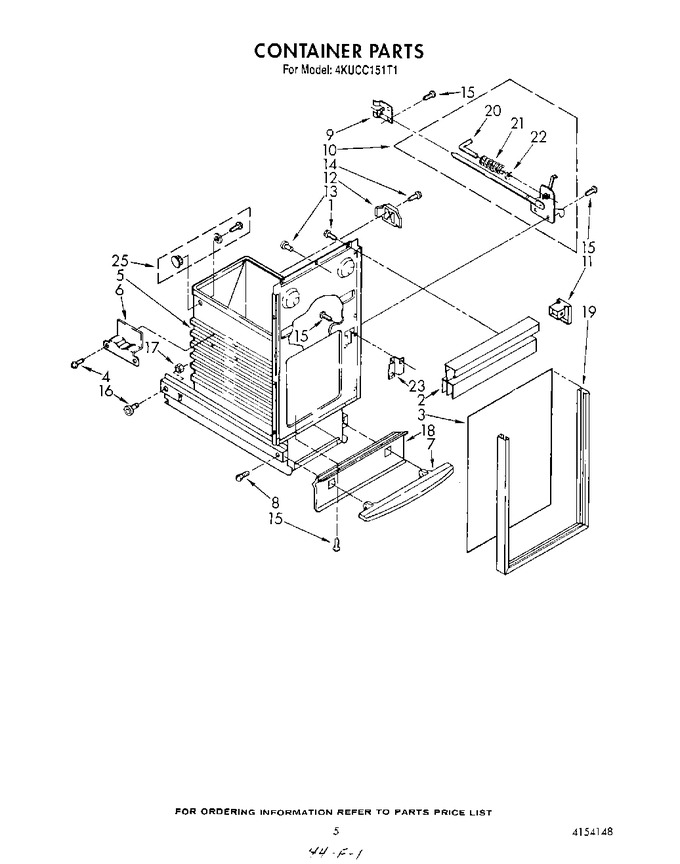

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 7.86
2	4151451		Handle, Container		Appelez-nous	-
3	4151463		Panel, Container (white & Black)		Appelez-nous	-
3	4151462		Panel, Container (harvest Gold & Almond)		Appelez-nous	-
4	WP489069		Screw, 8-18 X 1/2   (Replaces: 777465)			Immediately	$ 7.86
5	882666		Container Assembly		Appelez-nous	-
6	776523		Retainer, Bag (2)				$ 21.17
7	W11679165		Pedal, Foot   (Replaces: 4149672)				$ 59.49
8	WP780263		Screw, Shoulder No.8-32 X 3/8 (2)   (Replaces: 780263)				$ 7.85
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 93.43
10	675379		Latch Assembly   (Replaces: 775740)				$ 173.84
11	4151454		End Cap, Handle (r.h.)		Appelez-nous	-
11	4151455		End Cap, Handle (l.h.)		Appelez-nous	-
12	9871125		Spring, Safety Switch   (Replaces: 4149378)				$ 27.97
13	775785		Bumper, Container (2)		Appelez-nous	-
14	4149395		Screw (2)		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2   (Replaces: 776076)			Immediately	$ 7.86
16	WP9871602		Container, Bearing Roller   (Replaces: 776261)				$ 13.21
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 7.85
18	WPW10242557		Plate, Toe Guard   (Replaces: 4150358)				$ 135.74
19	4151460		Trim, Container (front)		Appelez-nous	-
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring, Latch				$ 89.33
22	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
23	775665		Plate, Latch				$ 59.42
25	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
