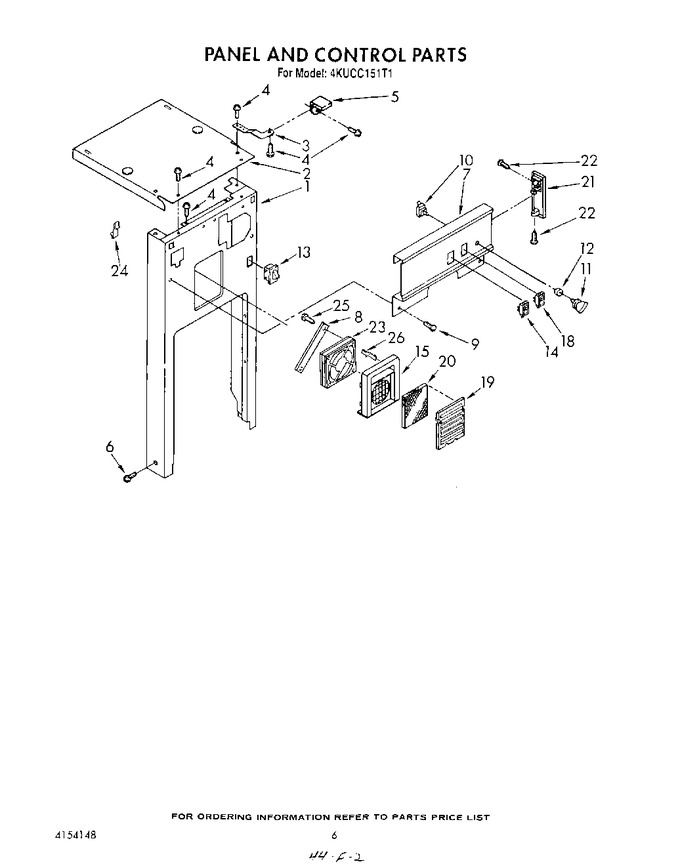

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4152069		Panel, Front Frame		Appelez-nous	-
2	W11684543		Cover, Top   (Replaces: 608572)		Appelez-nous	-
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 780464)			Immediately	$ 24.48
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 780465)			Immediately	$ 24.48
4	WP302868		Screw, 8-18 X 1/2   (Replaces: 780138)			Immediately	$ 8.18
5	WP780239		Bracket, Retainer (alternate) (2)   (Replaces: 780239)				$ 28.53
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 8.40
7	4152662		Escutcheon, Control		Appelez-nous	-
8	4152703		Strap, Fan				$ 75.32
9	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 246.48
11	776594		Knob, Rotary Switch				$ 30.27
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
13	WP4387911		Switch, Drawer   (Replaces: 4152060)			Immediately	$ 41.64
14	WP4314961		Switch, Rocker   (Replaces: 4150532)				$ 93.95
15	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 348.34
18	WP4314961		Switch, Air Freshener   (Replaces: 4151551)				$ 93.95
19	4151441		Cover, Air Freshener		Appelez-nous	-
20	WP4151750		Filter, Charcoal   (Replaces: 4151750)				$ 18.60
21	4151452		End Cap, Escutcheon (r.h.)		Appelez-nous	-
21	4151453		End Cap, Escutcheon (l.h.)		Appelez-nous	-
22	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
23	9871893		Fan, Filter   (Replaces: 4151546)				$ 348.34
24	4151897		Clip, Wire				$ 7.40
25	WP3351614		Screw, 10-24 X 3/8   (Replaces: 780034)			Immediately	$ 7.30
26	4151897		S-clip				$ 7.40
