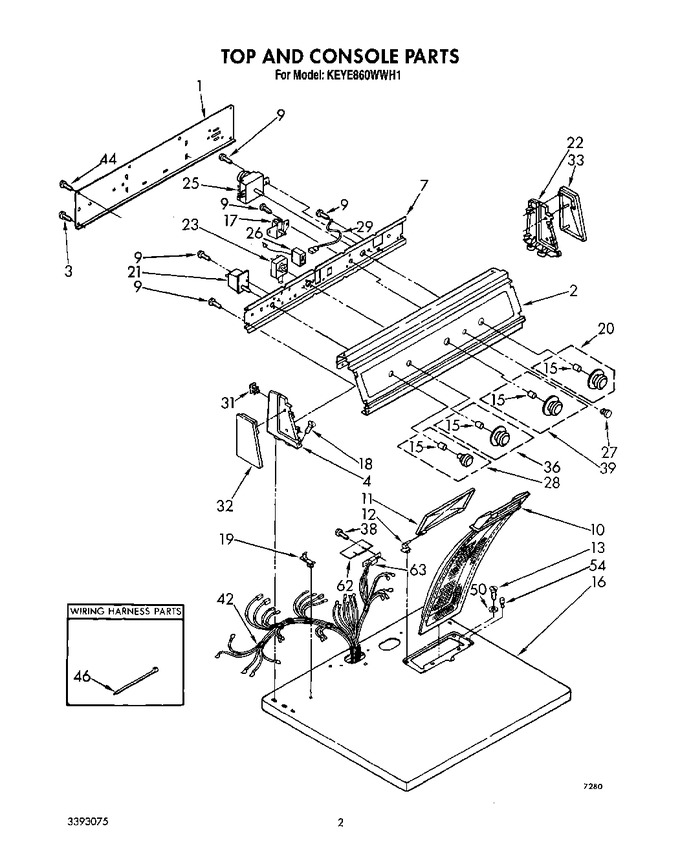

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3388889 | Panel, Rear Console |
|
- | |||||
| 2 | 3392807 | Panel, Control |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 3354640 | Cap, End (l.h.) |
|
- | |||||
| 5 | 3393810 | Wire, Jumper (blue) |
|
- | |||||
| 5 | 3393809 | Wire, Jumper (violet) |
|
- | |||||
| 7 | 3396009 | Bracket, Control |
|
- | |||||
| 9 | WP3390631 | Screw, 10-16 X 5/16 (Replaces: 339554) |
|
$ 7.82 | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 691205 | Cover, Lint Screen |
|
- | |||||
| 12 | WPW10044470 | Hinge, Cover (r.h.) (Replaces: 691193) |
|
$ 7.72 | |||||
| 12 | WPW10044480 | Hinge, Cover (l.h.) (Replaces: 691194) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 15 | WP688805 | Nut, Knurled (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 16 | 3393374 | Top (white) |
|
- | |||||
| 16 | 3393375 | Top (almond) |
|
- | |||||
| 17 | 347137 | Buzzer, Adjustable |
|
- | |||||
| 18 | WP388326 | Screw, 8-18 (2) (Replaces: 64211) |
|
$ 8.11 | |||||
| 19 | 358473 | Stop, Push-in (2) |
|
$ 5.84 | |||||
| 20 | 3389725 | Knob, Timer |
|
- | |||||
| 21 | 348314 | Relay, Push-to-start |
|
- | |||||
| 22 | 3354646 | Cap, End (r.h.) |
|
- | |||||
| 23 | 3394484 | Switch, Temperature (variable) |
|
- | |||||
| 25 | 3392949 | Timer, 60 Hz. |
|
$ 183.98 | |||||
| 26 | 3350417 | Lamp, Indicator |
|
- | |||||
| 27 | 3350383 | Lens, Light |
|
- | |||||
| 28 | 3390054 | Knob, Push To Start |
|
- | |||||
| 29 | 690853 | Wire, Ground |
|
- | |||||
| 31 | 689559 | Clip, Push-on (4) |
|
- | |||||
| 32 | 3353685 | Trim, Endcap (l.h.) |
|
- | |||||
| 33 | 3353678 | Trim, Endcap (r.h.) |
|
- | |||||
| 36 | 3351726 | Knob, Temperature |
|
- | |||||
| 38 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 39 | 3351726 | Knob, Adjustable Buzzer |
|
- | |||||
| 42 | 3394609 | Harness, Wiring |
|
- | |||||
| 44 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 46 | WPW10339879 | Tie, Wire (console Harness Area) (Replaces: 685963) |
|
$ 7.90 | |||||
| 50 | 237446 | Washer |
|
- | |||||
| 54 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 62 | WPW10476828 | Control, Electronic (Replaces: 3390537) |
|
Immediately | $ 314.22 | ||||
| 63 | 3391885 | Connector Assembly |
|
$ 86.40 | |||||
| LIT3389704 | Instructions, Installation |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| LIT3388652 | Label, Operating Instructions |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | ||||||
| LIT3392979 | Use & Care Guide |
|
- | ||||||
| LIT3387320 | Guide, Dryer |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| LIT3394613 | Wiring Diagram |
|
- | ||||||
| LIT3393075 | List, Service Parts |
|
- |
