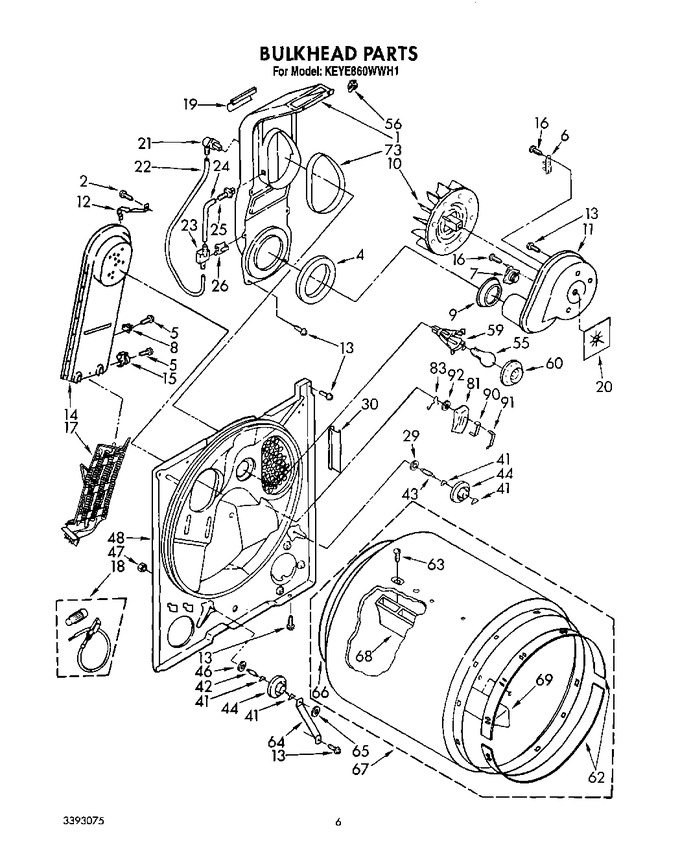

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 349242 | Lint Chute Assembly |
|
- | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.85 | ||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 7 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 8 | 279769 | Thermal Cutoff (Replaces: 3389946) |
|
Immediately | $ 62.85 | ||||
| 9 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | 695081 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | 695547 | Box, Heater |
|
- | |||||
| 15 | LS2-225 | Thermostat, 225~f (107.2~c) (Replaces: 347296) |
|
Immediately | $ 13.53 | ||||
| 16 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 695239) |
|
Immediately | $ 10.72 | ||||
| 17 | WP697663 | Heater Element (Replaces: 697663) |
|
$ 291.36 | |||||
| 18 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 19 | 686770 | Support Protector |
|
- | |||||
| 20 | 3392123 | Seal, Blower |
|
- | |||||
| 21 | 4338643CP | Tap, Downstream (Replaces: 339625) |
|
- | |||||
| 22 | 339893 | Tubing Downstream |
|
- | |||||
| 23 | 696371 | Sensor, Pressure |
|
- | |||||
| 24 | 339892 | Tubing Upstream |
|
- | |||||
| 25 | 339624 | Tap Upstream |
|
- | |||||
| 26 | 339745 | Clip, Switch |
|
- | |||||
| 29 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 30 | 686889 | Pad, Cabinet |
|
- | |||||
| 41 | WPW10512946 | Tri Ring (4) (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 47.30 | ||||
| 44 | WPW10314173 | Roller, Support (Replaces: 3396802) |
|
Immediately | $ 28.50 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | 685821 | Bulkhead |
|
- | |||||
| 55 | 8009 | Bulb (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 56 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 59 | 691034 | Socket Assembly |
|
- | |||||
| 60 | 341165 | Lens, Drum Light |
|
- | |||||
| 62 | 279441 | Ring, Bearing (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 64 | W11684613 | Bracket, Shaft (Replaces: 348944) |
|
$ 20.94 | |||||
| 65 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 66 | 279408 | Seal, Rear (Replaces: 347885) |
|
$ 73.58 | |||||
| 67 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 357.65 | |||||
| 68 | WP692490 | Baffle, Drum (long) (2) (Replaces: 692490) |
|
$ 159.27 | |||||
| 69 | WP3403636 | Baffle, Drum (short) (1) (Replaces: 692491) |
|
$ 138.66 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 81 | 279366 | Pad, Sensor (Replaces: 348861) |
|
$ 95.85 | |||||
| 83 | WP342267 | Clip, Sensor (2) (Replaces: 342267) |
|
$ 7.75 | |||||
| 90 | WP348859 | Electrode, Inside (Replaces: 348859) |
|
$ 7.98 | |||||
| 91 | WP348860 | Electrode, Outside (Replaces: 348860) |
|
$ 8.05 | |||||
| 92 | WP298877 | Washer, Insulating (Replaces: 298877) |
|
$ 22.58 |
