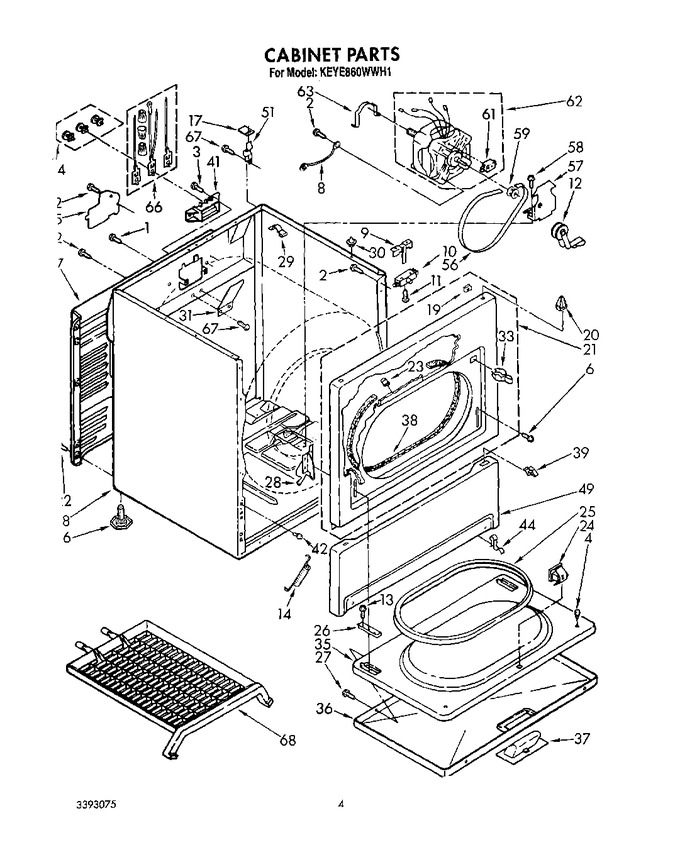

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


04 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-32 X 1/2   (Replaces: 697776)				$ 7.76
2	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
3	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
4	238614		Bumper (2)				$ 80.76
5	W11736322		Cover, Block Terminal   (Replaces: 690893)		Appelez-nous	-
6	342043		Screw, 10-32 X 1/2		Appelez-nous	-
7	348365		Panel, Rear		Appelez-nous	-
8	690236		Wire, Ground		Appelez-nous	-
9	WP691581		Clip, Door Switch   (Replaces: 691581)			Immediately	$ 8.09
10	W10820036		Switch, Door   (Replaces: 344475)			Immediately	$ 30.50
11	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 7.56
12	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
13	WP694091		Screw, 8-15 X 3/8   (Replaces: 694091)				$ 7.19
14	WPW10041960		Spring, Door (2)   (Replaces: 692495)			Immediately	$ 40.67
16	49621		Foot, Plastic Dryer (4)   (Replaces: 3392100)			Immediately	$ 8.55
17	18849		Pad, Top Hinge				$ 20.14
18	3394119		Cabinet (almond)		Appelez-nous	-
18	3394118		Cabinet (white)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 12.68
21	695631		Panel Front (almond)		Appelez-nous	-
21	279740		Panel, Front (white)   (Replaces: 695630)				$ 361.97
22	WP489069		Screw, Hex Washer Head   (Replaces: 693994)			Immediately	$ 7.86
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
24	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.89
25	W10906683		Seal, Door   (Replaces: 692494)				$ 128.53
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 21.39
27	WP694091		Screw   (Replaces: 694091)				$ 7.19
28	WP8066056		Hinge, R.h.   (Replaces: 692498)			Immediately	$ 98.56
28	WP8066057		Hinge, L.h.   (Replaces: 692501)				$ 96.14
29	WP98997		Clip   (Replaces: 98997)				$ 11.09
30	98669		Locator, Top				$ 12.03
31	690262		Shield, Light		Appelez-nous	-
32	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
34	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 47.37
35	WP695737		Door, Rear   (Replaces: 695737)				$ 254.56
36	3393550		Door, Front (almond)		Appelez-nous	-
36	WP3393549		Door, Front (white)   (Replaces: 3393549)				$ 176.51
37	WP348721		Handle, Door (white)   (Replaces: 3390781)				$ 77.89
37	3390782		Handle, Door (almond)		Appelez-nous	-
38	W11035878		Seal & Bearing Assembly   (Replaces: 692493)			Immediately	$ 78.78
39	WP3388229		Clip, Toe Panel (2)   (Replaces: 3388229)			Immediately	$ 8.45
41	279320		Block, Terminal   (Replaces: 690261)			Immediately	$ 68.25
42	238614		Bumper				$ 80.76
44	WP297092		Clip   (Replaces: 297092)			Immediately	$ 8.24
49	697096		Panel, Toe (almond)		Appelez-nous	-
49	697095		Panel, Toe (white)		Appelez-nous	-
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
56	341241		Belt, Drive   (Replaces: 3389628)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 13.37
59	WP8066184		Pulley, Motor   (Replaces: 3389627)			Immediately	$ 51.02
61	279827		Switch, Motor Start (use W/3391886 Motor)   (Replaces: 3388235)			Immediately	$ 191.95
62	279827		Motor, Drive 60 Hz.   (Replaces: 3391886)			Immediately	$ 191.95
63	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
63	WP660658		(alt.)   (Replaces: 343481)				$ 7.83
63	WP660658		(alt.)   (Replaces: 685441)				$ 7.83
66	279318		Terminal, Tinned & Brass (3) (includes Illus. 34)			Immediately	$ 100.99
67	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
68	692990		Rack, Dry		Appelez-nous	-
