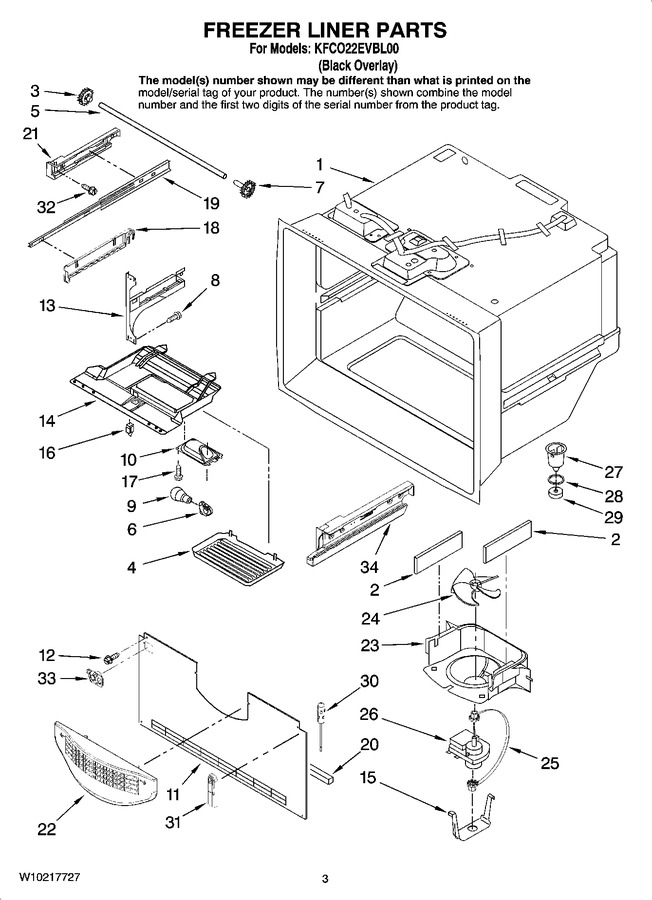

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (Replaces: 67001291) |
|
Immediately | $ 8.06 | ||||
| 3 | 12002497 | Gear (left) (includes Item 7) |
|
Immediately | $ 22.51 | ||||
| 4 | 67003905 | Cover, Light |
|
- | |||||
| 5 | W11715937 | Shaft (Replaces: 67004261) |
|
$ 68.69 | |||||
| 6 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 13.87 | ||||
| 7 | 12002497 | Gear (right) (includes Item 3) |
|
Immediately | $ 22.51 | ||||
| 8 | WP98165 | Screw (8) (Replaces: 67006473) |
|
$ 8.57 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: A0282812) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 67001035) |
|
$ 90.11 | |||||
| 11 | W10308420 | Cover, Evaporator (Replaces: W10203139) |
|
$ 302.02 | |||||
| 12 | 67006425 | Screw (4) |
|
Immediately | $ 7.30 | ||||
| 13 | WPW10330995 | Bracket, Door (right) (Replaces: W10119295) |
|
Immediately | $ 340.61 | ||||
| 13 | WPW10330994 | Bracket, Door (left) (Replaces: W10119064) |
|
Immediately | $ 169.02 | ||||
| 14 | W11712699 | Module, Freezer (Replaces: W10119832) |
|
$ 92.02 | |||||
| 15 | 10623002 | Clip, Evap Motor |
|
$ 12.11 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 67005653) |
|
Immediately | $ 37.30 | ||||
| 17 | 67006530 | Screw |
|
- | |||||
| 18 | W10119848 | Cradle, Basket (left) |
|
$ 49.78 | |||||
| 18 | W10119849 | Cradle, Basket (right) |
|
Immediately | $ 88.00 | ||||
| 19 | W11658403 | Slide, Drawer (Replaces: W10165841) |
|
Immediately | $ 225.25 | ||||
| 20 | W11451451 | Gasket, Bottom (Replaces: 67003731) |
|
$ 13.03 | |||||
| 21 | W10163087 | Adapter, Slide (right) |
|
$ 25.41 | |||||
| 21 | W10163084 | Adapter, Slide (left) |
|
$ 19.53 | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: W10175909) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: W10167023) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W11690160 | Grommet (Replaces: W10150583) |
|
$ 8.31 | |||||
| 26 | W11024089 | Motor, Evaporator (Replaces: W10199049) |
|
Immediately | $ 58.74 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.78 | |||||
| 30 | W11690896 | Thermistor (Replaces: W10203133) |
|
Immediately | $ 29.76 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 8.21 | |||||
| 32 | WP489474 | Screw (6) (Replaces: 67006406) |
|
Immediately | $ 8.55 | ||||
| 33 | W10201550 | Guide, Fill Tube |
|
- | |||||
| 34 | WPW10544404 | Adaptor, Shelf (right Hand) (Replaces: W10203149) |
|
$ 140.88 | |||||
| 34 | W10203148 | Adaptor, Shelf (left Hand) |
|
- | |||||
| W10196195 | Harness, Lights (freezer) |
|
$ 137.22 |
