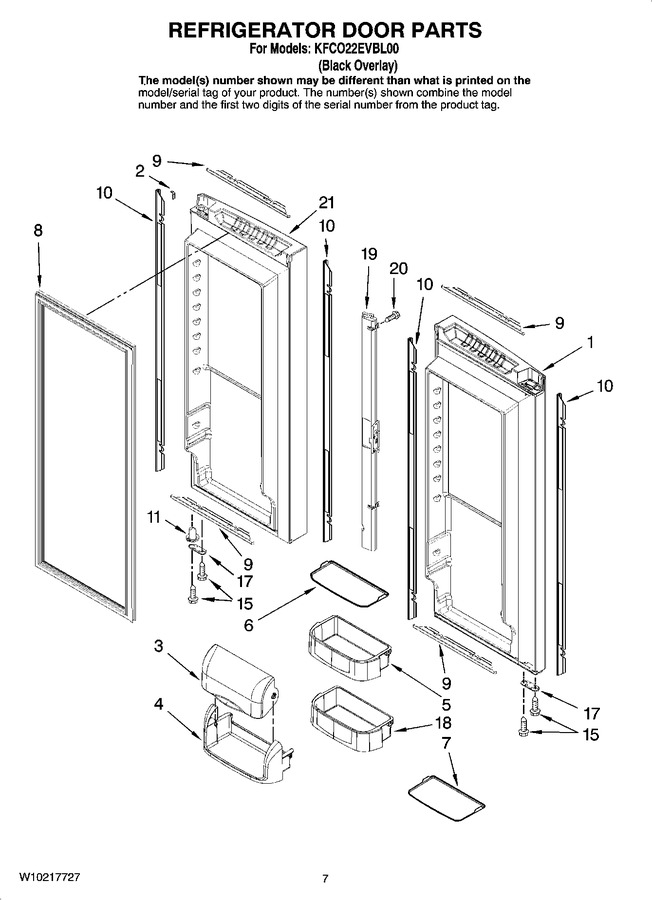

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13094704BQ		Door, Refrigerator (black, Lh)		Appelez-nous	-
2	W10150034		Clip, Trim (8)		Appelez-nous	-
3	WP12744905		Door, Dairy   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	WPW10451453		Bucket, Medium (3)   (Replaces: W10184033)				$ 90.36
6	W11510593		Gripper, Medium   (Replaces: W10184031)			Immediately	$ 17.43
7	W11510594		Gripper, Large   (Replaces: W10184032)				$ 20.01
8	W10830047		Gasket, Door (black)   (Replaces: W10163998)			Immediately	$ 200.20
9	W10130132		Trim, Top / Bottom				$ 129.33
10	WPW10130136		Trim, Side   (Replaces: W10130136)				$ 177.11
11	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
15	WP98165		Screw   (Replaces: 67006287)				$ 8.57
17	W10153126		Stop, Door (black)				$ 15.56
18	WPW10451454		Bucket, Gallon (2)   (Replaces: W10184034)				$ 93.88
19	W11177241		Mullion, Door (black)   (Replaces: 12732508B)			Immediately	$ 187.59
20	W11311945		Screw   (Replaces: 67006786)				$ 14.72
21	13094703BQ		Door, Right (black)				$ 439.53
