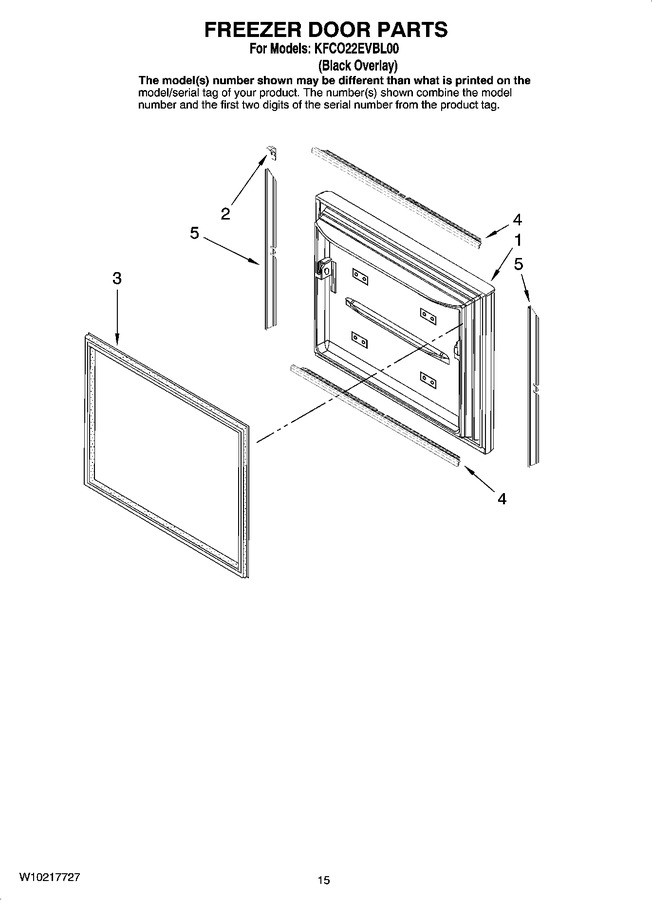

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13094913BQ		Door, Freezer (black)   (Replaces: 13094902BQ)				$ 1,153.37
2	W10150034		Clip, Trim (4)		Appelez-nous	-
3	W10436252		Gasket, Door (black)   (Replaces: W10164041)			Immediately	$ 362.28
4	W10130133		Trim, Top / Bottom			Immediately	$ 201.23
5	W10130137		Trim, Side				$ 139.30
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	2217192		Cleaner, (stainless Steel)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (black) (uncut)				$ 237.46
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 94.14
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)				$ 59.89
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
