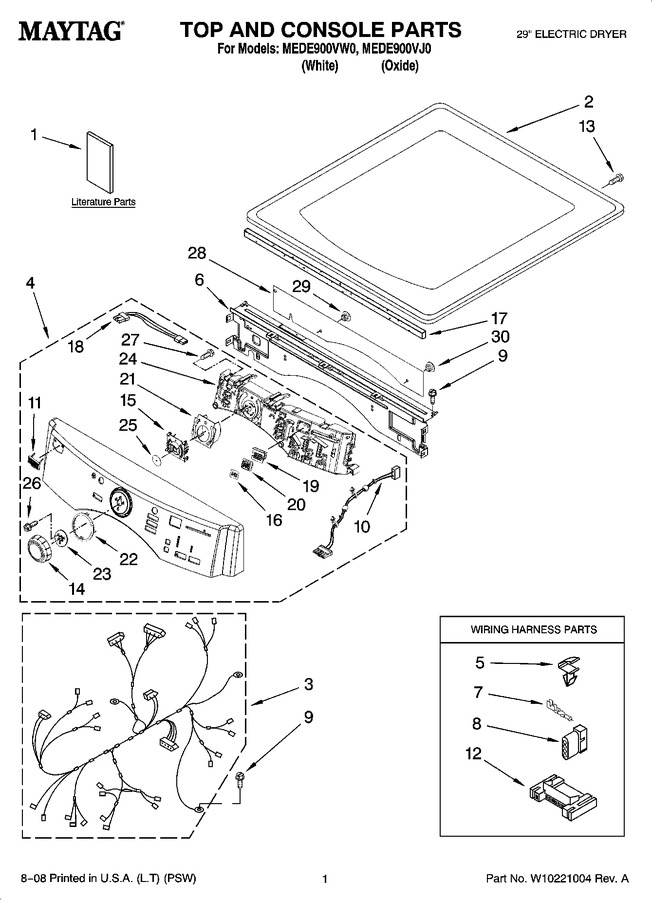

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10165147 | Sheet, Steam Tip |
|
- | |||||
| 1 | W10057357 | Guide, Quick Start |
|
- | |||||
| 1 | W10057353 | Use & Care Guide |
|
- | |||||
| 1 | W10057360 | Tech Sheet |
|
- | |||||
| 1 | W10134980 | Installation, Diagnostic Guide |
|
- | |||||
| 2 | W10164743 | Top (oxide) |
|
$ 42.44 | |||||
| 2 | 3980634 | Top (white) |
|
- | |||||
| 3 | W10111017 | Harness, Main |
|
- | |||||
| 4 | W10164456 | Panel, Console (oxide (includes Buttons & Control Board Item. 13)) |
|
- | |||||
| 4 | W10164454 | Panel, Console (white) |
|
- | |||||
| 5 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 6 | W10215656 | Bracket, Console (includes Items: 21.) |
|
$ 72.06 | |||||
| 7 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 8 | 3936144 | Plug, Terminal |
|
$ 21.22 | |||||
| 9 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 10 | W10185550 | Power Cable User Interface |
|
- | |||||
| 11 | W10732500 | Medallion (Replaces: W10177245) |
|
$ 45.43 | |||||
| 12 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 13 | W11808444 | Screw, 8-32 X 1/32 (Replaces: 98139) |
|
- | |||||
| 14 | W10164576 | Knob, Assembly |
|
$ 56.77 | |||||
| 15 | W10170293 | Guide, Light Cycle Internal |
|
$ 94.31 | |||||
| 16 | W10171504 | Foil-display |
|
$ 13.42 | |||||
| 17 | W10112267 | Foam Seal |
|
$ 97.53 | |||||
| 18 | W10185548 | Harness, User-interface |
|
$ 104.00 | |||||
| 19 | W10171502 | Fram-light (guide Display) |
|
$ 16.93 | |||||
| 20 | W10164578 | Guide, Light (3-way Digital) |
|
$ 15.96 | |||||
| 21 | W10170295 | Frame-light Guide |
|
- | |||||
| 22 | W10164567 | Cycle, Light Guide |
|
$ 68.85 | |||||
| 23 | W10172298 | Bushing, Knob |
|
$ 13.40 | |||||
| 24 | W10164611 | User-interface |
|
$ 298.36 | |||||
| 25 | 8572039 | Seal, User Interface |
|
- | |||||
| 26 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.94 | |||||
| 27 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 28 | W10215674 | Shield, Console Bracket |
|
$ 33.47 | |||||
| 29 | W10216201 | Plug-hole,1/4``(2) |
|
- | |||||
| 30 | W10216202 | Plug-hole,5/16``(1) |
|
- |
