01 - Top And Console Parts
02 - Cabinet Parts

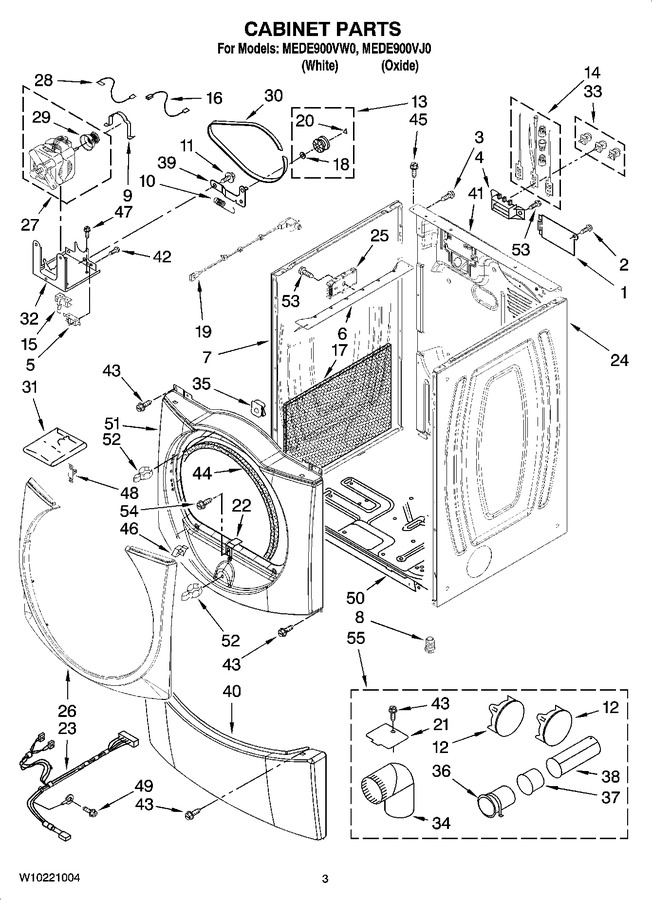

03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10119283 | Cover, Terminal Block (Replaces: 8576583) |
|
$ 128.35 | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.82 | ||||
| 3 | W10850756 | Screw, 10-32 X 5/8 (ground) (Replaces: 8533974) |
|
$ 7.76 | |||||
| 4 | WP3397659 | Block Terminal (Replaces: 3397659) |
|
$ 23.02 | |||||
| 5 | 279782 | Switch, Broken Belt (Replaces: 8066134) |
|
Immediately | $ 54.44 | ||||
| 6 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 171.13 | |||||
| 7 | W11233548 | Panel, Side (l.h.) (white) (Replaces: W10192435) |
|
$ 248.89 | |||||
| 7 | W10193956 | Panel, Side (l.h.) (oxide) |
|
$ 121.60 | |||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.02 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10151499) |
|
$ 71.98 | |||||
| 12 | W10470674 | Plug, Multivent (white) (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (3) (includes Illus. 33) |
|
Immediately | $ 100.99 | ||||
| 15 | WP8066120 | Lever, Snap Switch (Replaces: 8066120) |
|
Immediately | $ 33.11 | ||||
| 16 | W10167612 | Wire, Belt Switch |
|
$ 12.78 | |||||
| 17 | W10128772 | Sound Panel |
|
- | |||||
| 18 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.19 | ||||
| 19 | W10128087 | Assembly, Door Switch |
|
$ 90.98 | |||||
| 20 | WPW10512946 | Tri- Ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10354249 | Cover-plate (Replaces: 8066115) |
|
$ 8.96 | |||||
| 22 | 8529053 | Ramp, Door |
|
$ 51.37 | |||||
| 23 | W10181463 | Harness, Digital Interface |
|
$ 118.15 | |||||
| 24 | W11233548 | Panel, Side (r.h.) (white) (Replaces: W10192446) |
|
$ 248.89 | |||||
| 24 | W10193959 | Panel, Side (r.h.) (oxide) |
|
$ 121.60 | |||||
| 25 | W10177388 | Control Board |
|
- | |||||
| 26 | W10164751 | Trim-ring Assembly (oxide (includes Item. 48 )) |
|
- | |||||
| 26 | W10164746 | Trim-ring Assembly (white) |
|
- | |||||
| 27 | 279787 | Motor Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 235.65 | ||||
| 28 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 61.58 | |||||
| 29 | W10837625 | Pulley 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 12.16 | ||||
| 30 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 100.30 | ||||
| 31 | 8541503 | Kit, Stack Assembly |
|
Immediately | $ 43.18 | ||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 133.59 | |||||
| 33 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 47.37 | ||||
| 34 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 26.82 | |||||
| 35 | 62825 | Clip, S-type (3) |
|
$ 8.11 | |||||
| 36 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 91.38 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 78.95 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 88.80 | |||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | W10164730 | Panel, Toe (oxide) |
|
- | |||||
| 40 | W10116271 | Panel, Toe (white) |
|
- | |||||
| 41 | W10487430 | Panel, Rear (Replaces: W10053558) |
|
Immediately | $ 340.11 | ||||
| 42 | WP98129 | Screw, 6-20 X 1-1/16 (Replaces: 98129) |
|
$ 7.56 | |||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP308685 | Screw, 10-16x1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 46 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 21.11 | |||||
| 47 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 48 | WPW10129065 | Trim-clip Metal (Replaces: W10129065) |
|
Immediately | $ 11.66 | ||||
| 49 | W11693756 | Screw-ground (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 50 | 8519207 | Base, Cabinet |
|
- | |||||
| 51 | W10153275 | Front Panel (white) |
|
- | |||||
| 51 | W10164915 | Front Panel (oxide (includes Illus. 44)) |
|
$ 144.72 | |||||
| 52 | 279570 | Strike, Door (2) (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 53 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 54 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 55 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey) (Replaces: W10186596) |
|
Immediately | $ 76.65 | ||||
| 55 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 |
