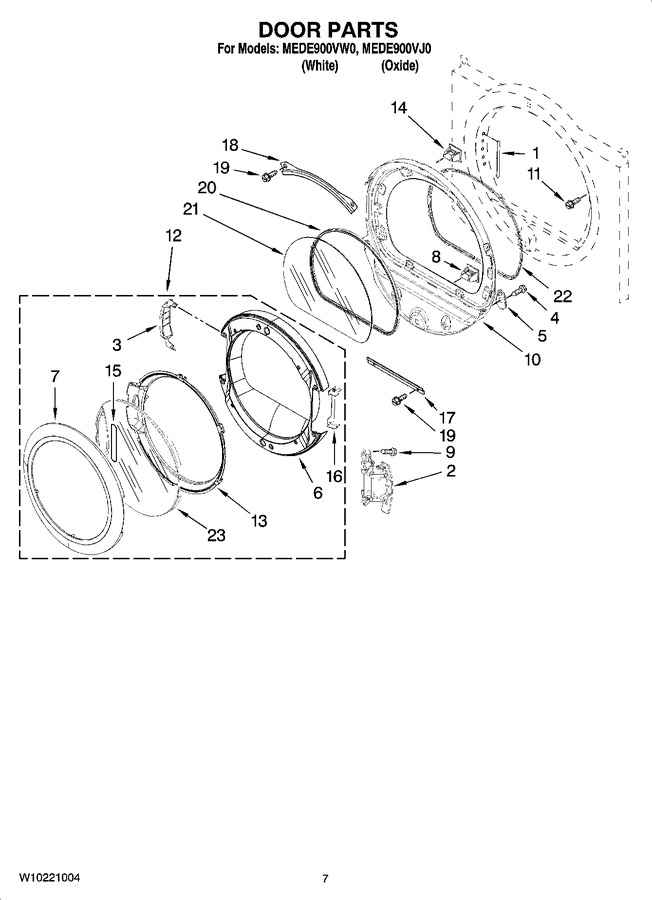

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10085210		Label, Hinge Hole				$ 85.03
2	WPW10310366		Door Hinge Assembly   (Replaces: W10139920)			Immediately	$ 258.42
3	W10180119		Cover, Door Hinge				$ 35.43
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
5	W10048910		Screw-plug		Appelez-nous	-
6	W10180118		Door-intermediate				$ 214.39
7	W10193522		Handle Ring				$ 196.17
8	279570		Door Catch Assembly (lower)   (Replaces: 690081)			Immediately	$ 8.89
9	WPW10159996		Screw, 10-24 X 3/64   (Replaces: W10159996)				$ 8.52
10	8578229		Door Assembly (inner) (includes Illus. 8 & 14)				$ 75.57
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	W10193530		Door, Outer Assembly				$ 228.00
13	W10180117		Door Mask				$ 92.85
14	279570		Door Catch Assembly (upper)   (Replaces: 3398175)			Immediately	$ 8.89
15	W10153281		Pad,foam-frame		Appelez-nous	-
16	W10180120		Door-shield				$ 50.86
17	W10822054		Retainer-window Lower   (Replaces: 8519354)			Immediately	$ 18.01
18	8519356		Retainer-window Upper		Appelez-nous	-
19	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
20	8579662		Seal-window				$ 106.25
21	8566254		Glass-window				$ 127.75
22	WPW10139457		Seal-door   (Replaces: W10139457)				$ 134.28
23	W10171571		Screen, Door				$ 142.54
NI	W10202939		Paint, Touch-up (1/2oz.) (oxide Metallic)				$ 26.23
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	8529894		Hold Down Kit		Appelez-nous	-
NI	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 12.34
NI	4392067		Kit, Dryer Repair   (Replaces: 80047)			Immediately	$ 62.25
NI	8579666ARP		Kit, Door Reversing   (Replaces: 8579666A)				$ 64.73
NI	W10044609A		Bag Assembly (contains The Following)   (Replaces: W10044609)			Immediately	$ 22.46
NI	WP76314		(hose Inlet) 6`hose With Elbow   (Replaces: 76314)				$ 45.26
NI	W10044603		(hose Inlet) 1`hose				$ 24.90
NI	WP16123		Washer   (Replaces: W10194033)				$ 8.16
NI	49586		Connector, Hose   (Replaces: W10044604)				$ 15.48
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
