View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

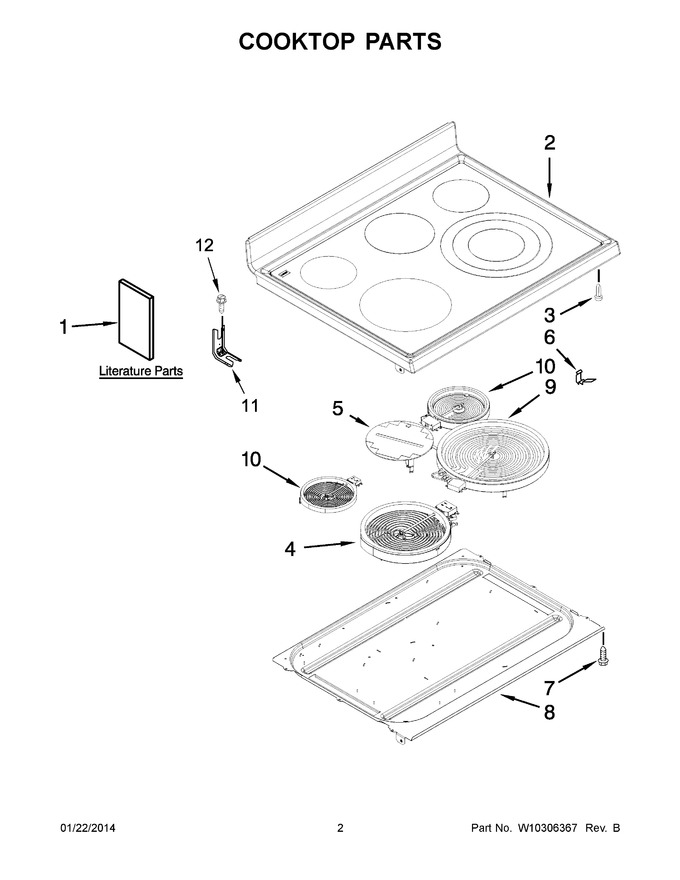

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10239462 | Wiring Diagram |
|
- | |||||
| 1 | W10258095 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10239459 | Use & Care Guide |
|
- | |||||
| 2 | W10225470 | Cooktop (white) |
|
- | |||||
| 2 | W10225471 | Cooktop (black) |
|
- | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 8.81 | |||||
| 4 | WPW10251108 | Element (3200w) (left Front) (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 5 | WP9762851 | Element, Warm Zone (120v) (center Rear) (Replaces: 9762851) |
|
Immediately | $ 290.36 | ||||
| 6 | 74007134 | Spring, Element (Replaces: 7803P087-60) |
|
$ 12.26 | |||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 8 | W10170717 | Bottom, Burner Box |
|
- | |||||
| 9 | WPW10162041 | Element (3000/2200/1100w) (right Front) (Replaces: W10162041) |
|
$ 385.99 | |||||
| 10 | W11171119 | Element (1200w) (right Rear And Left Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 11 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F656-51) |
|
Immediately | $ 6.11 | ||||
| 12 | WP7101P485-60 | Screw, Anti Tip (Replaces: 7101P485-60) |
|
$ 30.72 |
