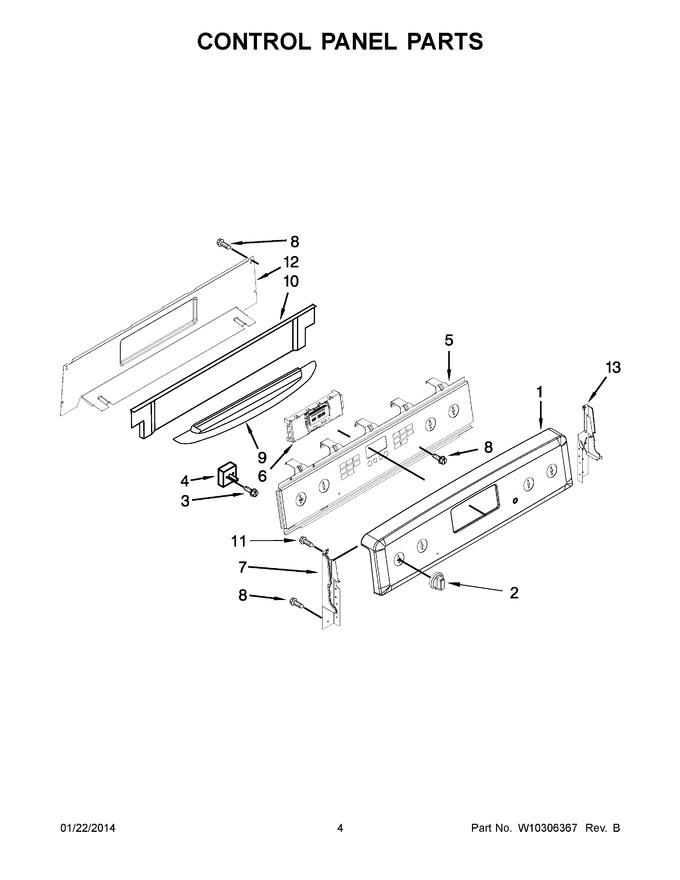

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10097280 | Panel, Backguard (black) |
|
$ 119.25 | |||||
| 1 | W10097270 | Panel, Backguard (white) |
|
$ 118.50 | |||||
| 1 | W10097310 | Panel, Backguard (stainless) |
|
$ 116.84 | |||||
| 2 | W10291145 | Knob (control) |
|
$ 20.82 | |||||
| 2 | W11193834 | Knob (black) (Replaces: W10211372) |
|
$ 88.98 | |||||
| 2 | WPW10211371 | Knob (white) (Replaces: W10211371) |
|
Immediately | $ 21.23 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10169580 | Switch, Infinite Triple (right Front) (Replaces: W10169580) |
|
Immediately | $ 231.01 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WPW10149355 | Switch, Infinite (left Front) (Replaces: W10149355) |
|
Immediately | $ 204.91 | ||||
| 5 | W10207496 | Overlay, Active |
|
$ 296.24 | |||||
| 6 | W10157248 | Control |
|
$ 262.94 | |||||
| 7 | W10163969 | Endcap (black (left Hand)) |
|
$ 34.61 | |||||
| 7 | W10163967 | Endcap (white (left Hand)) |
|
$ 32.00 | |||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 9 | 3604F382-81 | Shield, Heat Visor (white) |
|
$ 32.49 | |||||
| 9 | 3604F382-09 | Shield, Heat Visor (black) |
|
$ 50.83 | |||||
| 10 | 3604F381-19 | Shield, Vent Ext |
|
$ 31.31 | |||||
| 11 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 12 | W10243038 | Cover, Console-upper |
|
$ 49.02 | |||||
| 13 | W10163968 | Endcap (white (right Hand)) |
|
- | |||||
| 13 | W10163970 | Endcap (black (right Hand)) |
|
$ 34.76 |
