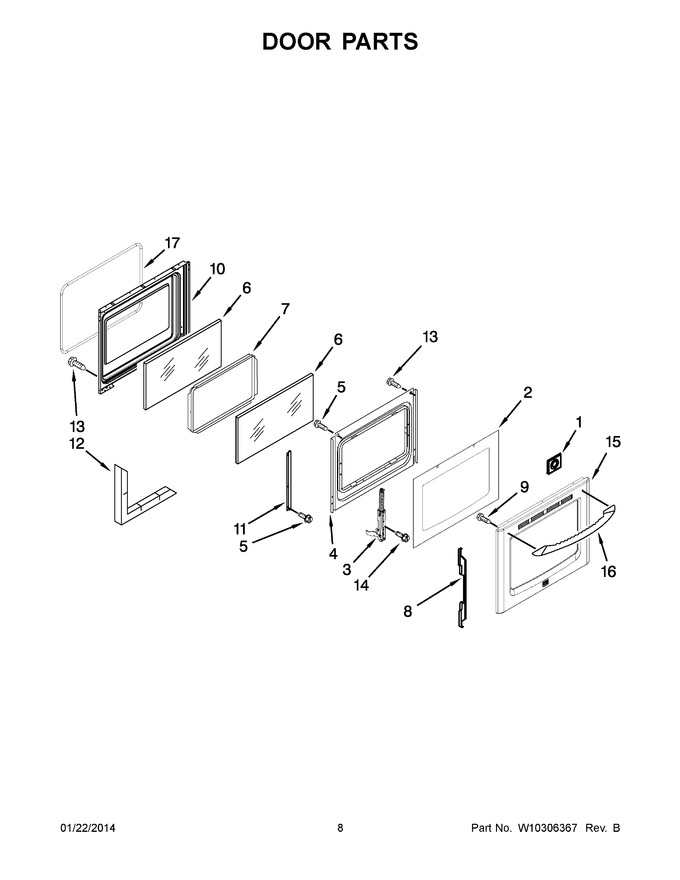

05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11190816		Spacer, Handle   (Replaces: 3823F017-45)				$ 17.43
2	W10181725		Glass, Outer Door				$ 96.10
3	74010546		Hinge, Door   (Replaces: 7106P124-60)			Immediately	$ 85.93
4	3601F380-51		Retainer, Insulation				$ 25.83
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 180.59
7	3801F886-51		Bracket, Glass				$ 38.25
8	3801P918-51		Bracket, Glass		Appelez-nous	-
9	WPW10241367		Screw   (Replaces: W10241367)				$ 6.27
10	2402W297-19		Lining, Door				$ 152.41
11	3801F886-51		Bracket, Glass				$ 38.25
12	7002P246-60		Insulation, Oven Door				$ 58.49
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
15	W10214541		Glass, Door (black)				$ 246.20
15	W10097300		Glass, Door (stainless)				$ 339.10
15	W10172590		Glass, Door (white)		Appelez-nous	-
16	WPW10161708		Handle, Door (stainless)   (Replaces: W10161708)				$ 373.01
16	WPW10171747		Handle, Door (white)   (Replaces: W10171747)				$ 296.11
16	WPW10171748		Handle, Door (black)   (Replaces: W10171748)				$ 290.60
17	W10290904		Gasket, Window		Appelez-nous	-
