Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7863004 Pad, Handle Inner (alm) Appelez-nous -
2 D7863104 Pad, Handle Outer (alm) Appelez-nous -
3 D7826603 Handle Appelez-nous -
4 M0215116 Screw Appelez-nous -
5 WP3400094 Screw   (Replaces: M0253942) Special Order $ 9.26

6 10263802 Bushing, Door (wht) Appelez-nous -
7 C8972402 Stop, Door Appelez-nous -
8 R0181181 Kit,dr Closure   (Replaces: D7751402) In-Stock Immediately $ 7.55

9 D7852105 Upper Trim Frz Dr (l) Appelez-nous -
10 D7853905 Trim Center Frz Appelez-nous -
11 D7792705 Trim, Lwr Frz Door (l) Appelez-nous -
12 D7792902 Frz Trim, Retainer Appelez-nous -
13 W11245710 Screw, Sm (stnls)   (Replaces: M0210417) In-Stock Immediately $ 14.75

14 M0213815 Screw Appelez-nous -
15 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

16 10252902 Filter Bushing Appelez-nous -
17 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

18 10185101 Top Hinge-e Ct Appelez-nous -
19 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 10.58

20 B8389001 Shim, Top Hinge Appelez-nous -
21 B8386703 Kit,btm Hinge Shim Appelez-nous -
21 B8386701 Kit,btm Hinge Shim Appelez-nous -
21 B8386702 Kit,btm Hinge Shim Appelez-nous -
22 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

23 10163601 Bottom Hinge, Frz Appelez-nous -
24 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

25 M0233844 Screw, T F Appelez-nous -
26 B8387701 Shim, Door Closure Appelez-nous -
26 B8387702 Shim, Door Closure Appelez-nous -
27 D7872101 Cover Hinge Appelez-nous -
28 10274101 Clip, Trim Appelez-nous -
29 10274201 Trim Vertical Appelez-nous -
30 10272001 Trim Fz Door Top Appelez-nous -
31 10271901 Trim-fz Door Bot. Appelez-nous -
32 M0213815 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

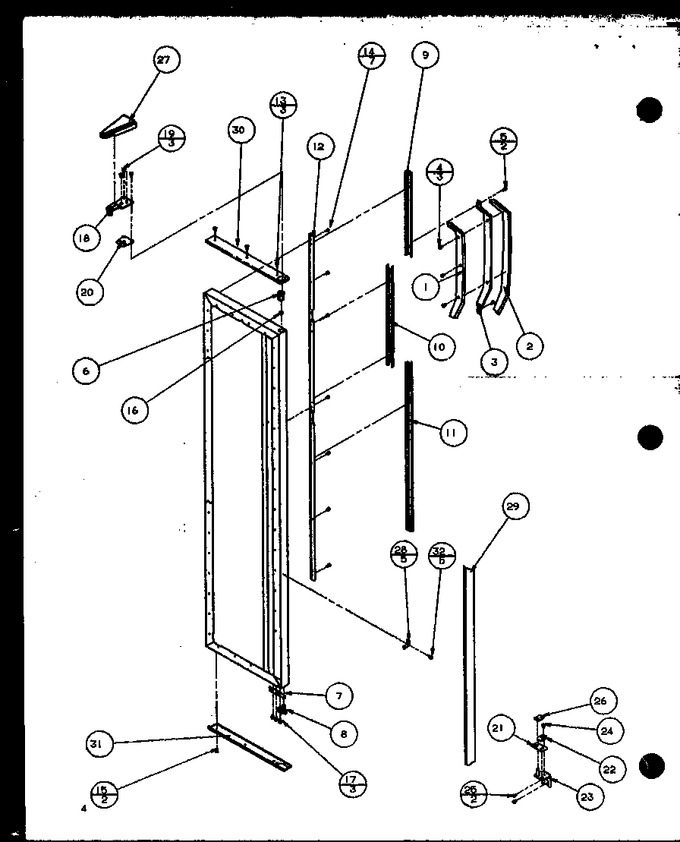

Diagram for 36048 (BOM: P1122102W L)
