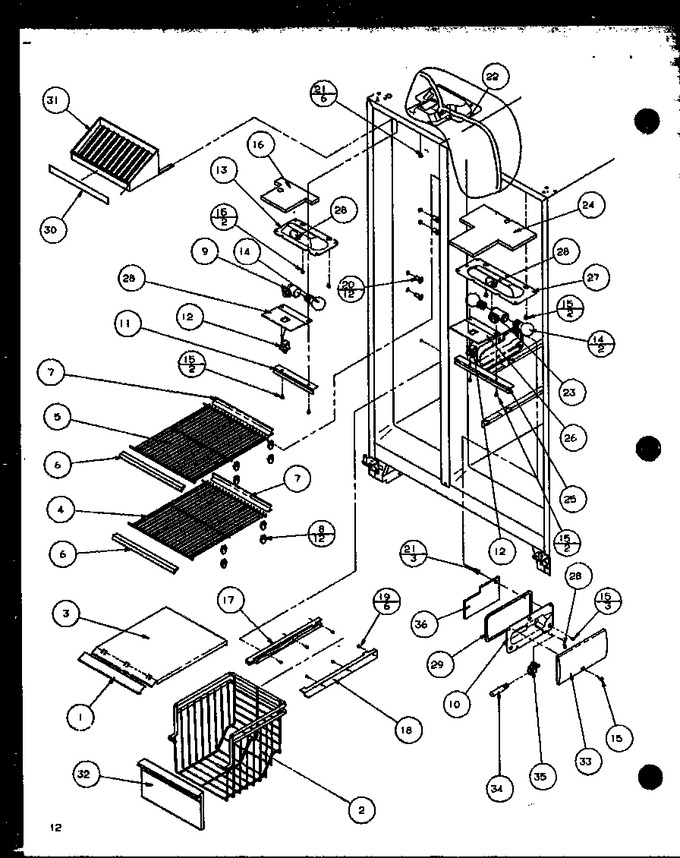

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7616620 | Trim, Frz Shelf |
|
- | |||||
| 2 | D7820802 | Basket, Frz |
|
- | |||||
| 3 | D7781506 | Freezer Shelf Pnt |
|
- | |||||
| 4 | D7788310 | Shelf, Frz |
|
- | |||||
| 5 | D7788309 | Shelf, Frz |
|
- | |||||
| 6 | 10049917 | Trim |
|
- | |||||
| 7 | C8913607 | Trim, Rear Frz Shelf |
|
- | |||||
| 8 | C8973801 | Support, Frz Shelf |
|
$ 8.35 | |||||
| 9 | C8973404 | Socket-light |
|
- | |||||
| 10 | 10270201 | Housing, Light |
|
- | |||||
| 11 | 10014704 | Shield Light |
|
- | |||||
| 12 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 37.23 | ||||
| 13 | D7760102 | Housing Frz Light |
|
- | |||||
| 14 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 15 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 6.95 | ||||
| 16 | C8976301 | Barrier |
|
- | |||||
| 17 | 10282301 | Glide-fz, L.h. |
|
- | |||||
| 18 | 10282302 | Glide-fz, R.h. |
|
- | |||||
| 19 | M0213529 | Screw |
|
- | |||||
| 20 | C8973701 | Plug, Frz Shelf Support |
|
- | |||||
| 21 | M0580007 | Grommet, Screw |
|
- | |||||
| 22 | 10281301 | Harness-outer Liner |
|
- | |||||
| 23 | D7808602 | Socket, Dual Lamp |
|
- | |||||
| 24 | C8778301 | Insulation |
|
- | |||||
| 25 | 10014705 | Light Shield |
|
- | |||||
| 26 | D7297603 | Cover, Light Sw |
|
- | |||||
| 27 | D7716404 | Housing-ref Light |
|
- | |||||
| 28 | B5733302 | Clip, Ground |
|
- | |||||
| 29 | A3189337 | Gasket |
|
- | |||||
| 30 | C8986111 | Insert Juice Rack |
|
- | |||||
| 31 | D7839701 | Rack, Juice V |
|
- | |||||
| 32 | D7820711 | Front,basket |
|
- | |||||
| 33 | Y10270101 | Cover-light |
|
- | |||||
| 34 | WPA3073101 | Bulb 120v. 40w. (Replaces: A3079001) |
|
Immediately | $ 12.11 | ||||
| 35 | 10281601 | Socket-light |
|
- | |||||
| 36 | 10278001 | Insulation |
|
- |
