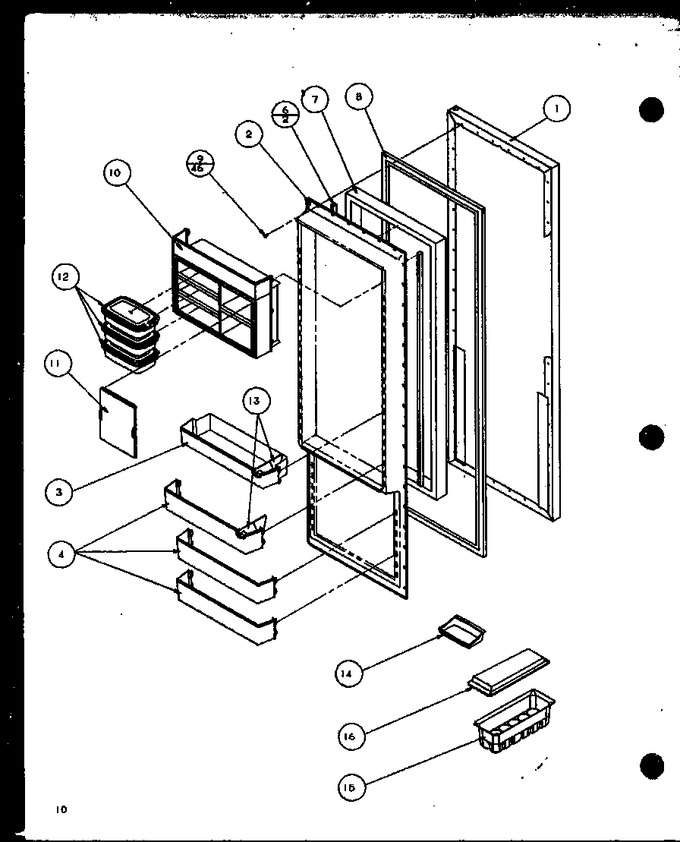

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10284101LQ		Assy, Ref Door (almond)		Appelez-nous	-
2	D7828203		Inner Door, Ref		Appelez-nous	-
3	D7783310		Bucket Ref		Appelez-nous	-
4	67003697		Shelf Ref Door   (Replaces: D7783410)				$ 78.17
6	C8987104		Seal, Door Dike		Appelez-nous	-
7	B0523562		Insul. By The Ft.		Appelez-nous	-
8	10359701		Gasket, Door (w Ref)		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	D7781202		Module-dairy		Appelez-nous	-
11	D7781315		Door Dairy		Appelez-nous	-
12	D7806403		Container Sec. Ser.		Appelez-nous	-
13	D7814607		Snugger, Door		Appelez-nous	-
14	10310901		Tray, Butter		Appelez-nous	-
15	D7695616		Egg Bucket		Appelez-nous	-
16	D7805909		Cover, Egg Bucket		Appelez-nous	-
