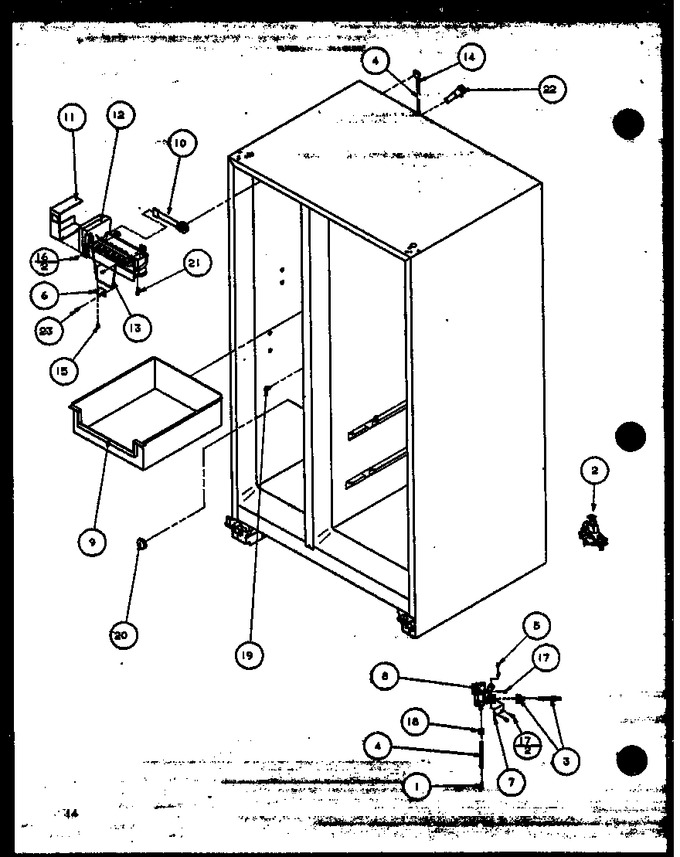

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1055101		Spring, Antikink		Appelez-nous	-
2	A3034801		Saddle Valve		Appelez-nous	-
3	10127801		Coupling		Appelez-nous	-
4	WPB5705307		Tubing Plastic   (Replaces: B5705308)				$ 13.05
5	B8374701		Clip, Water Valve		Appelez-nous	-
6	B8391801		Bracket, I/m		Appelez-nous	-
7	D7701601		Brkt, Water Valve		Appelez-nous	-
8	4318047		Valve-water K   (Replaces: D7712602)			Immediately	$ 74.09
9	D7806210		Pan, Ice V-a		Appelez-nous	-
10	D7826301		Harness, Mod. Im		Appelez-nous	-
11	D7820401		Cover Im		Appelez-nous	-
12	D7824706Q		Ice Maker   (Replaces: D7824701)			Immediately	$ 167.35
13	D7875201		Arm, I.m. Shut-off		Appelez-nous	-
14	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
15	M0211116		Screw, Sm		Appelez-nous	-
16	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
17	681390		Screw   (Replaces: M0251015)				$ 13.71
18	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
19	M0322202		Tie Wire		Appelez-nous	-
20	M0311301		Plug Button		Appelez-nous	-
21	WP628379		Clip, Thermal Fuse   (Replaces: B8389801)				$ 11.10
22	B8318810		Fill Tube Assy		Appelez-nous	-
23	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
NI	A1066001		Inst. Water Hook-up		Appelez-nous	-
