SELECT A DIAGRAM

01 - 8 Cube Compact Ice Maker


02 - Evap And Air Handling


03 - Factory Installed Ice Maker


04 - Fz Door


05 - Fz Door


06 - Fz Shelving And Ref Light


07 - Machine Compartment


08 - Ref Door


09 - Ref Door


10 - Ref Shelving And Drawers


11 - Ref/fz Controls And Cabinet Parts


12 - Rollers And Back Unit


13 - Rollers And Back Unit

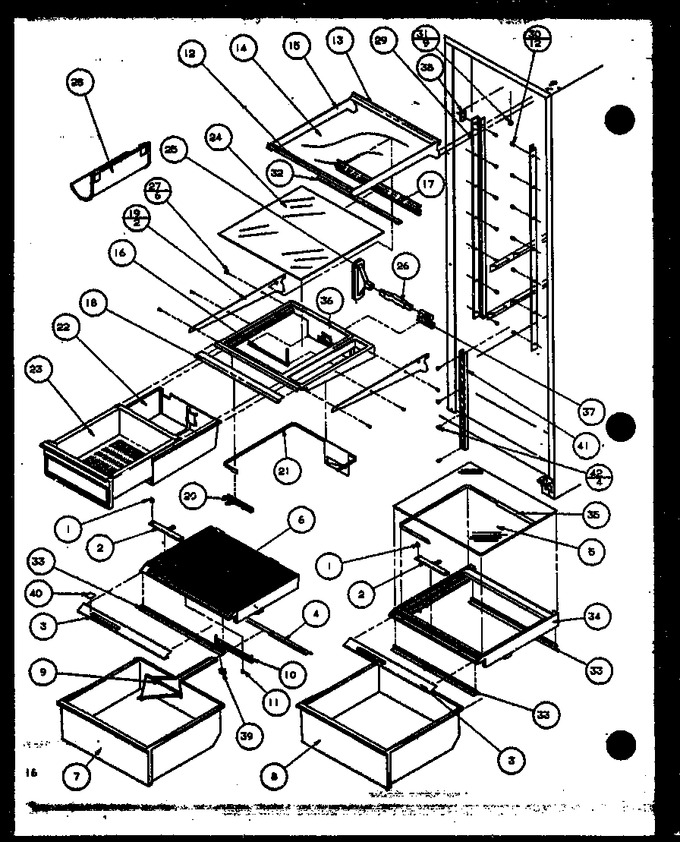

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10038401		Knob, Crisper Control		Appelez-nous	-
2	YD7860605		Slide, Crisper		Appelez-nous	-
3	D7616654		Trim, Crisper Front		Appelez-nous	-
4	D7764106		Damper, Humidity Control		Appelez-nous	-
5	10036029		Glass Top Crisper		Appelez-nous	-
6	D7856904		Top Crisper		Appelez-nous	-
7	D7817213		Pan Crisper		Appelez-nous	-
8	D7782019		Crisper Pan, Lower		Appelez-nous	-
9	D7782205		Slide, Arm Crisper Control		Appelez-nous	-
10	D7807603		Support, Slide		Appelez-nous	-
11	M0230017		Screw,tc		Appelez-nous	-
12	10049915		Trim		Appelez-nous	-
12	10049916		Trim		Appelez-nous	-
13	C8913606		Trim, Glass Shelf Rear		Appelez-nous	-
13	C8913614		Trim, Glass Shelf		Appelez-nous	-
14	10036032		Glass Half Shelf		Appelez-nous	-
14	10036023		Glass, Full Shelf		Appelez-nous	-
15	D7871006		Frame, Cant. Shelf		Appelez-nous	-
15	D7871017		Frame Cant.		Appelez-nous	-
16	A3263905		Gasket-per Ft		Appelez-nous	-
17	C8990404		Trim-m.k., Top, Rear		Appelez-nous	-
18	10049914		Trim		Appelez-nous	-
19	D7862958		Side Rail		Appelez-nous	-
19	D7862959		Side Rail		Appelez-nous	-
20	D7859401		Slide-mk Control		Appelez-nous	-
21	D7859503		Band M.k. Control		Appelez-nous	-
22	D7817907		Sleeve M.k.		Appelez-nous	-
23	D7814012		Pan, Meat		Appelez-nous	-
24	10036026		Glass Shelf		Appelez-nous	-
25	D7873601		Grommet, Mk		Appelez-nous	-
26	D7869001		Xduct M.k. Air		Appelez-nous	-
27	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
28	D7547614		Rack, Bottle		Appelez-nous	-
29	D7789806		Ladder Cantilever		Appelez-nous	-
29	D7789805		Ladder Cantilever		Appelez-nous	-
30	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
31	M0580007		Grommet, Screw		Appelez-nous	-
32	10043102		Ext. Rear Glass		Appelez-nous	-
33	D7718403		Seal, Crisper Front		Appelez-nous	-
33	D7718404		Seal, Crisper Rear		Appelez-nous	-
34	D7853202		Frame Crisper		Appelez-nous	-
35	D7859603		Band Crisper Control		Appelez-nous	-
36	D7857003		Frame, Mk		Appelez-nous	-
37	D7869102		Ext. Air Duct		Appelez-nous	-
38	C8992301		Bracket		Appelez-nous	-
39	M0118102		Clip		Appelez-nous	-
40	10151002		Insert, Crisper Top		Appelez-nous	-
41	D7599003		Ladder, Center		Appelez-nous	-
42	M0230923		Screw		Appelez-nous	-
NI	R0179158		Glass Crisper Top Assy		Appelez-nous	-
NI	D7871826		Glass Shelf Assy		Appelez-nous	-
NI	D7871822		Glass Full Shelf Assembly		Appelez-nous	-
NI	D7871307		Crisper Top Assy Q		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
