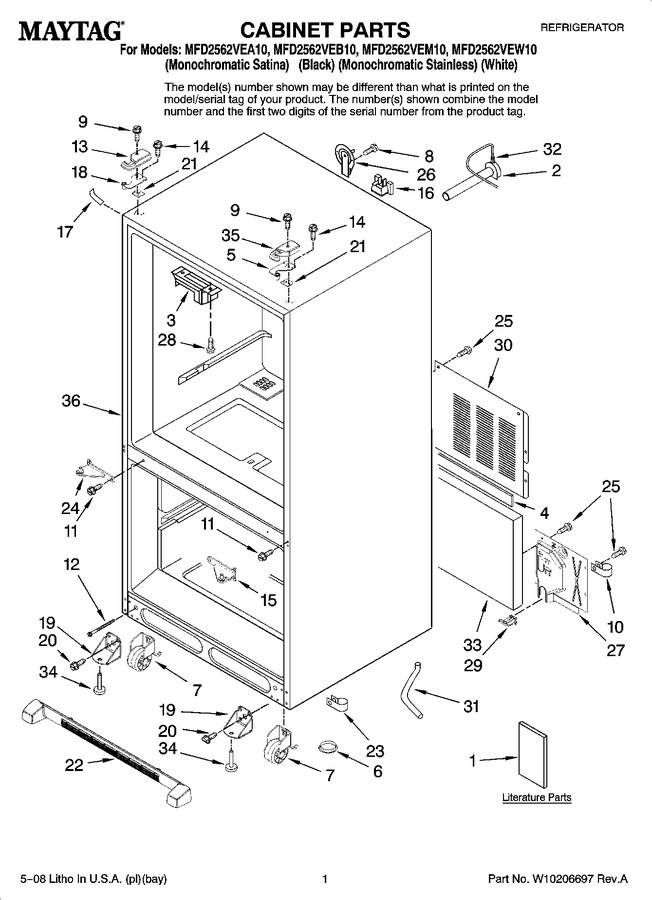

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175446		Owners Manual		Appelez-nous	-
1	W10187813		Tag, Energy		Appelez-nous	-
1	W10198858		Tech Sheet		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 119.86
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 8.21
4	B5759649		Gasket		Appelez-nous	-
5	W11592374		Hinge, Top Right   (Replaces: 67005955)			Immediately	$ 31.90
6	A3076901		Plug-button				$ 5.70
7	67006118		Roller Assy. (2)		Appelez-nous	-
8	WP98165		Screw   (Replaces: 67006287)				$ 8.57
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
11	W11573362		Screw (6)   (Replaces: 67006380)				$ 14.72
12	71003131		Bolt, Adjusting (front)   (Replaces: 67006611)			Immediately	$ 7.08
13	W10337647		Cover, Left Hinge (black)   (Replaces: 67005951)			Immediately	$ 23.33
13	WPW10337634		Cover, Left Hinge (white)   (Replaces: 67005953)			Immediately	$ 23.54
13	WPW10337648		Cover, Left Hinge (apollo Grey)   (Replaces: W10191116)				$ 23.12
14	WP489349		Screw (6)   (Replaces: 67006303)			Immediately	$ 8.43
15	W10917988		Hinge, Center (rt) (apollo Grey)   (Replaces: W10191143)			Immediately	$ 95.63
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 67006443)				$ 91.53
15	67006379		Hinge, Center (rt) (white)		Appelez-nous	-
16	67004092		Block, Filter (2)		Appelez-nous	-
17	WP12587703AP		Cover, Corner (apollo Grey)   (Replaces: W10191102)				$ 8.07
17	67003484		Cover, Corner (white)				$ 21.42
17	67003485		Cover, Corner (black)			Immediately	$ 22.14
18	W11592375		Hinge, Top Left   (Replaces: W10199045)				$ 31.92
19	W10208641		Bracket, Foot (2)		Appelez-nous	-
20	67006564		Screw			Immediately	$ 8.15
21	12999501		Shim, Hinge (left)   (Replaces: 67006308)				$ 99.53
22	WPW10534155		Grille, Toe (apollo Grey)   (Replaces: W10191107)			Immediately	$ 119.56
22	WPW10534153		Grille, Toe (black)   (Replaces: 67006375)				$ 154.57
22	WPW10534154		Grille, Toe (white)   (Replaces: 67006377)				$ 153.66
23	W10157973		Clip, Drain Tube				$ 7.80
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 67006277)				$ 97.92
24	W10917988		Hinge, Center (lt) (apollo Grey)   (Replaces: W10191142)			Immediately	$ 95.63
24	W10918164		Hinge, Center (lt) (black)   (Replaces: 67006275)				$ 91.53
25	67006425		Screw (10)			Immediately	$ 7.30
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 19.19
27	67004098		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw (2)   (Replaces: 67006669)			Immediately	$ 8.36
29	12831101		Sweep, Dual Tube   (Replaces: 67004101)				$ 13.03
30	67006102		Cover, Unit		Appelez-nous	-
31	W10164397		Tube, Drain				$ 15.53
32	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
33	67003796		Insulation, Sound				$ 19.27
34	W11177593		Foot Brake   (Replaces: 67003868)				$ 12.18
35	WPW10191117		Cover, Right Hinge (apollo Grey)   (Replaces: W10191117)				$ 23.05
35	WP67005956		Cover, Right Hinge (black)   (Replaces: 67005956)				$ 22.54
35	67005958		Cover, Right Hinge (white)				$ 21.57
21A	12999502		Shim, Hinge (right)   (Replaces: 67006309)				$ 100.60
