SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts

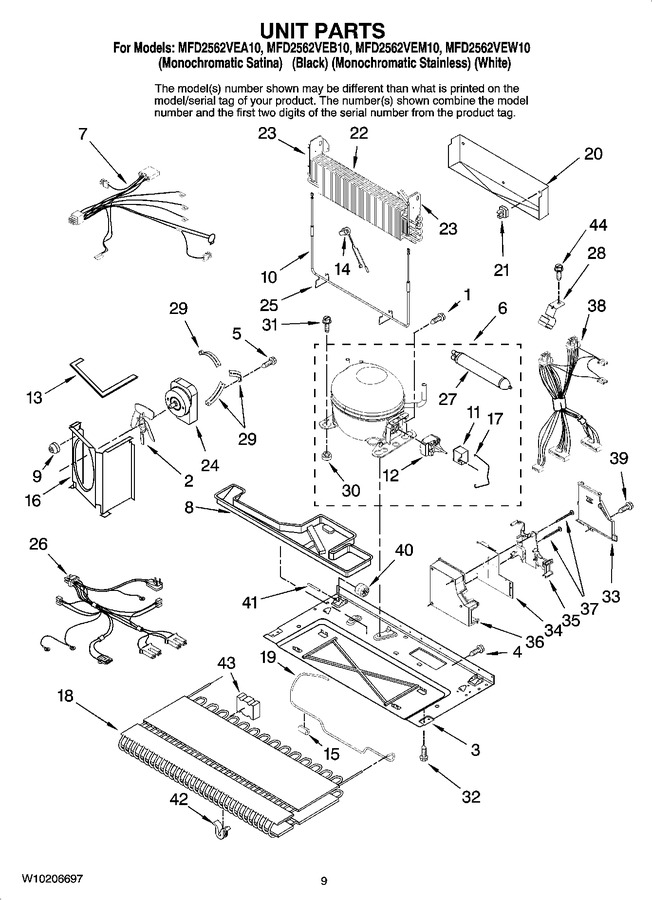

05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 62.11
3	67005889		Basepan		Appelez-nous	-
4	67006425		Screw (2)			Immediately	$ 6.95
5	WP67004954		Screw (3)   (Replaces: 67004954)				$ 7.79
6	W10160407		Compressor (incudes Items 11,12,17,27, & 30)   (Replaces: W10134623)				$ 599.92
7	W10171661		Harness, Evap Heater				$ 35.79
8	WP12579803		Pan, Drain   (Replaces: 67007175)				$ 245.45
9	61004743		Grommet (3)				$ 5.51
10	WP67002493		Heater, Defrost   (Replaces: 67002493)			Immediately	$ 146.15
11	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
12	WPW10197428		Start Device   (Replaces: W10128791)			Immediately	$ 89.21
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.28
14	WPW10165425		Thermostat, Def.   (Replaces: W10165425)			Immediately	$ 74.57
15	67005680		Grommet (2)				$ 21.05
16	W10158508		Shroud		Appelez-nous	-
17	2255199		Clip, Capacitor		Appelez-nous	-
18	WP67006131		Condenser   (Replaces: 67006131)				$ 366.74
19	W10134293		Tube, Discharge				$ 55.52
20	W11547653		Tray, Drip   (Replaces: 67002490)				$ 54.30
21	10623002		Clip, Evaporator				$ 12.11
22	12002041		Evaporator Kit (incl. Evap., Heat Shield, & Instr. Sheet)				$ 366.06
23	67001084		Dam (right Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 67004432)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	13060202		Harness, Mc				$ 96.21
27	WPW10143759		Drier   (Replaces: 2317845)			Immediately	$ 30.78
28	10547003		Clip, Drier		Appelez-nous	-
29	WP67004953		Bracket, Fan Motor   (Replaces: 67004953)				$ 68.83
30	WPW10169124		Grommet (4)   (Replaces: W10169124)			Immediately	$ 7.19
31	12846902		Screw (3)   (Replaces: 67006432)				$ 13.64
32	12992101		Screw (4)   (Replaces: 67006573)		Appelez-nous	-
33	67005421		Cover, Hv Box				$ 64.83
34	W10205114		Board, Hv Control (inc. Inst. Sheet)		Appelez-nous	-
35	67005719		Spacer, Hv Box		Appelez-nous	-
36	67005718		Box, Hv		Appelez-nous	-
37	67006550		Screw (2)		Appelez-nous	-
38	12972902		Harness, Hv				$ 80.90
39	67006615		Screw, Cover		Appelez-nous	-
40	WP67005149		Roller (2)   (Replaces: 67005149)			Immediately	$ 22.02
41	67006434		Axle (2)			Immediately	$ 7.52
42	WPW10137529		Grommet (4)   (Replaces: W10137529)				$ 8.34
43	67005491		Block, Condenser		Appelez-nous	-
44	WP33001882		Screw   (Replaces: 67006737)				$ 79.72
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
	978026		Valve, Access (5/16``)			Immediately	$ 128.09
	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	978030		Valve, Access (3/4``)				$ 130.71
	978029		Valve, Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2``)		Appelez-nous	-
23A	67001083		Dam (left Side)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
