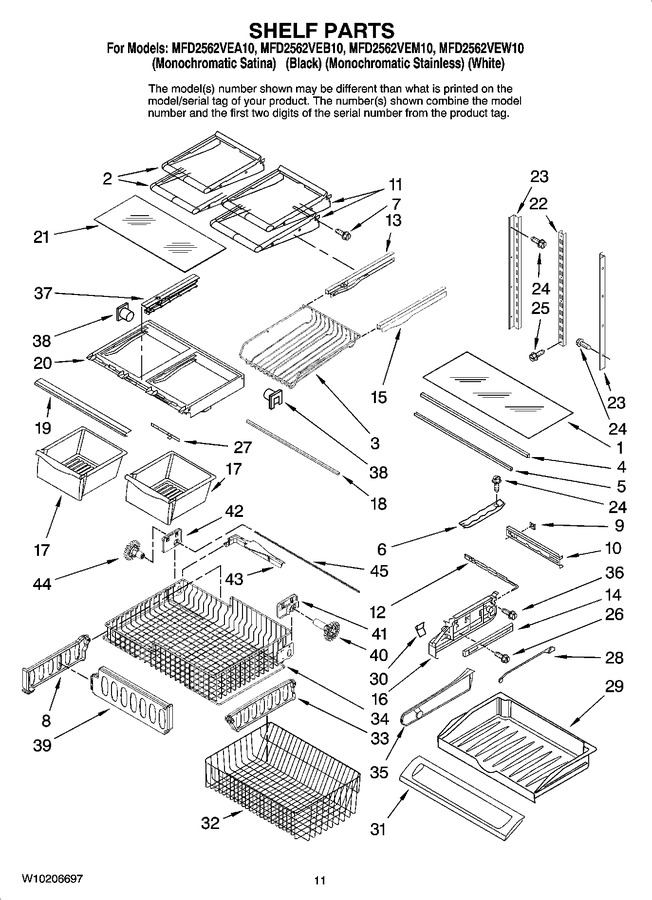

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002761		Glass, Pantry				$ 103.45
2	W10208663		Shelf, Glide Out				$ 115.65
3	67004585		Rack, Can		Appelez-nous	-
4	W11812285		Extr, Glass Support (2)   (Replaces: 67006010)				$ 53.33
5	WP12227305WD		Brace, Pantry (2)   (Replaces: 67002330)				$ 108.36
6	WP67001719		Track, Pantry   (Replaces: 67001719)			Immediately	$ 8.99
7	W11233072		Screw (4)   (Replaces: 67006626)			Immediately	$ 14.72
8	W10171557		Divider, Upper Basket		Appelez-nous	-
9	67002329		Gasket, Pantry				$ 22.09
10	12656202		Housing, Control   (Replaces: 67005625)				$ 148.84
11	W10205737		Shelf, Stat (2)				$ 304.16
12	WP67003793		Slide, Temperature   (Replaces: 67003793)			Immediately	$ 78.49
13	WP67001054		Glide, Left   (Replaces: 67001054)			Immediately	$ 8.82
14	WPW10235370		Glide, Drawer(2)   (Replaces: 67007026)			Immediately	$ 199.80
15	WP67001053		Glide, Right   (Replaces: 67001053)			Immediately	$ 9.24
16	W10874836		Endcap, Pantry (right)   (Replaces: 67005858)			Immediately	$ 38.43
16	W10874836		Endcap, Pantry (left)   (Replaces: 67005863)			Immediately	$ 38.43
17	WP67004515		Pan, Crisper (2)   (Replaces: 67004515)			Immediately	$ 176.72
18	WP12642303WD		Brace, Crisper   (Replaces: 67002748)				$ 112.26
19	WPW10231345		Trim, Crisper   (Replaces: 67004510)				$ 137.67
20	WP67003854		Frame, Crisper   (Replaces: 67003854)			Immediately	$ 227.55
21	WP67006704		Glass, Crisper Cover   (Replaces: 67006704)				$ 212.77
22	67001073		Ladder, Center				$ 56.89
23	67002489		Ladder, Side				$ 71.09
24	67006425		Screw (6)   (Replaces: 67006400)			Immediately	$ 7.30
25	W10709795		Screw (2)   (Replaces: 67006360)				$ 13.79
26	WP67006415		Screw (4)   (Replaces: 67006415)				$ 8.38
27	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 8.20
28	WP67003795		Rod, Temperature Control   (Replaces: 67003795)				$ 8.45
29	WP67003531		Drawer, Pantry   (Replaces: 67003531)				$ 162.82
30	W11498983		Knob, Temperature Control   (Replaces: 67003791)				$ 30.64
31	W10827015		Door, Pantry Drawer   (Replaces: 67005903)			Immediately	$ 175.81
32	W10150039		Basket, Freezer (lower)				$ 128.38
33	W10847995		Divider, Lower Basket   (Replaces: W10146440)				$ 92.48
34	WPW10348246		Basket, Freezer (upper)   (Replaces: W10169949)				$ 274.97
35	WP67002759		Divider, Pantry Drawer   (Replaces: 67002759)			Immediately	$ 61.25
36	WP98165		Screw (4)   (Replaces: 67006287)				$ 8.57
37	WPW10326469		Rail, Center Crisper Frame   (Replaces: 67004514)			Immediately	$ 33.37
38	WP12603701		Supports, Crisper Frame   (Replaces: 12603701)				$ 10.83
39	W10171558		Divider, Upper Freezer				$ 42.49
40	WPW10474715		Gear   (Replaces: W10146446)			Immediately	$ 32.76
41	W10348260		Mount, Rh Gear   (Replaces: W10146442)				$ 89.90
42	W10348259		Mount, Lh Gear   (Replaces: W10146441)				$ 89.87
43	W10149389		Lift, Bail Arm				$ 92.66
44	WPW10474716		Gear   (Replaces: W10158749)			Immediately	$ 32.42
45	W10199044		Shaft		Appelez-nous	-
