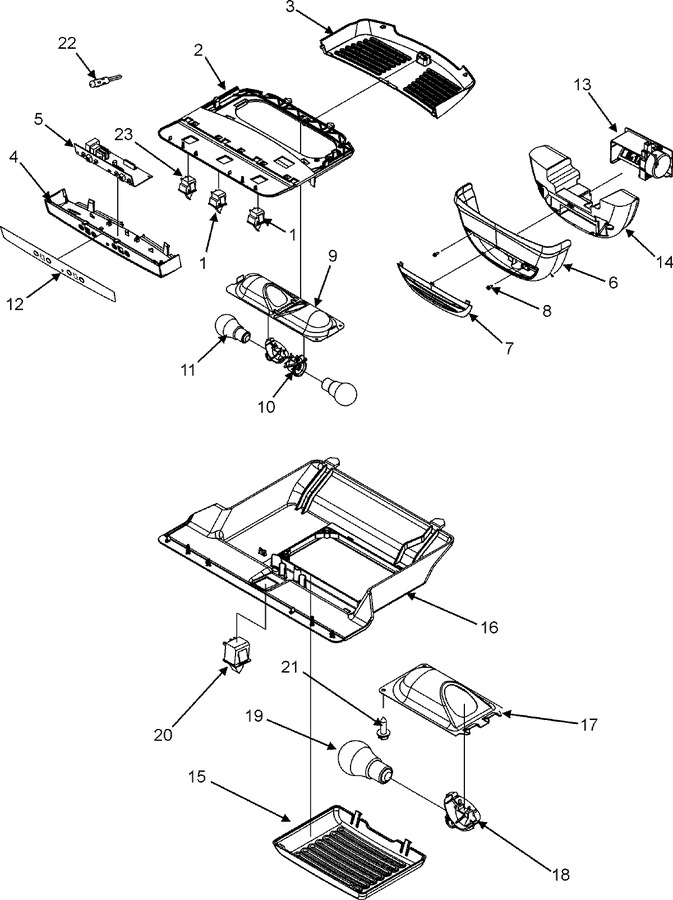

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11384469		Switch, Light   (Replaces: C3680310)	10		Immediately	$ 37.23
2	67004078		Module, Light	10	Appelez-nous	-
3	W11284721		Cover, Ref Light   (Replaces: 67003897)	10			$ 100.97
4	67004005		Module, Ref Control	10	Appelez-nous	-
5	WPW10503278		Board, Control   (Replaces: 67006712)	10		Immediately	$ 55.44
6	WP12806701		Cover, Damper   (Replaces: 67003899)	10			$ 113.00
7	67003900		Insert, Damper Cover	10		Immediately	$ 8.14
8	W11772394		Screw   (Replaces: 67006602)	10		Immediately	$ 12.16
9	12806601		Housing, Light   (Replaces: 67003901)	10			$ 104.95
10	W11447232		Socket, Light   (Replaces: Y12570701)	10		Immediately	$ 13.21
11	W11679940		Bulb, Light X   (Replaces: 67003883)	10		Immediately	$ 11.30
12	67004642		Overlay, Control Module	10	Appelez-nous	-
13	WP67003903		Control, Damper   (Replaces: 67003903)	10		Immediately	$ 168.73
13	67005162		Harness, Damper	10			$ 56.42
14	67003904		Insulation, Damper Control	10			$ 5.53
15	67003905		Cover, Fz Light	10	Appelez-nous	-
16	67003906		Module, Fz Control	10			$ 116.80
17	W11702858		Housing, Light   (Replaces: 67001035)	10			$ 85.82
18	W11447232		Socket, Light   (Replaces: Y12570701)	10		Immediately	$ 13.21
19	W11679940		Bulb, Light 40 W   (Replaces: A0282812)	10		Immediately	$ 11.30
20	W11396033		Switch, Light/intlk   (Replaces: 67005653)	10		Immediately	$ 37.30
21	67006530		Screw, Tc	10	Appelez-nous	-
22	12002355		Thermistor Kit	10		Immediately	$ 47.36
23	W11478401		Switch, Energy Saver   (Replaces: 67003940)	10		Immediately	$ 137.72
24	67006095		Harness, Fz Module	10	Appelez-nous	-
24	WP12868601		Harness, Ff Control   (Replaces: 67004032)	10			$ 124.57
