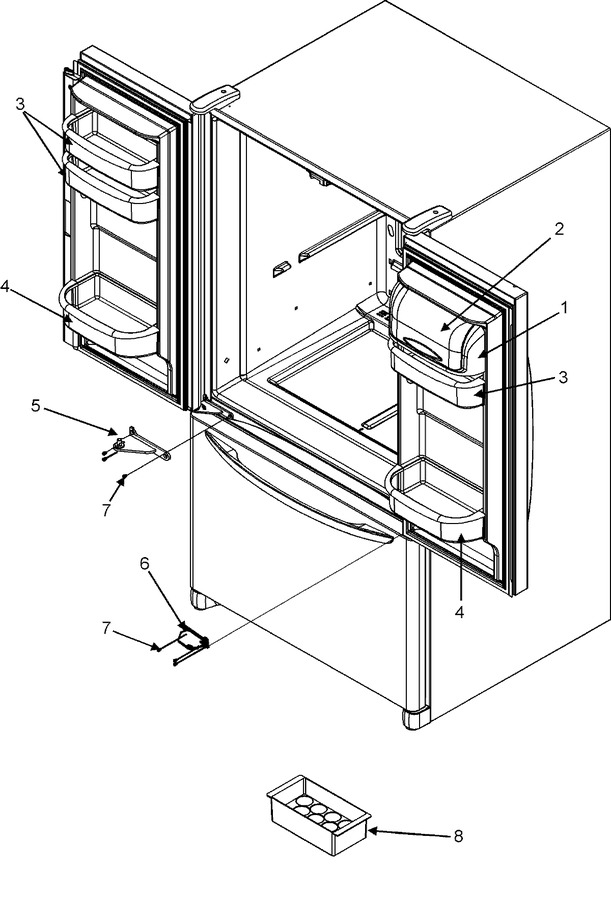

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67001279		Tray, Dairy   (Replaces: 67001279)	10		Immediately	$ 88.01
2	WP67003637		Door, Dairy   (Replaces: 67003637)	10		Immediately	$ 82.67
3	67004040		Bucket, Ref Dr (med)	10			$ 95.99
4	67004641		Bucket, Ref Dr Gal	10			$ 45.66
5	W10918113		Hinge, Center (lt-wht)   (Replaces: 67006277)	10			$ 97.92
6	67006379		Hinge, Center (rt-wht)	10	Appelez-nous	-
7	W11573362		Screw   (Replaces: 67006380)	10			$ 14.72
8	67215-2		Tray, Egg	10	Appelez-nous	-
