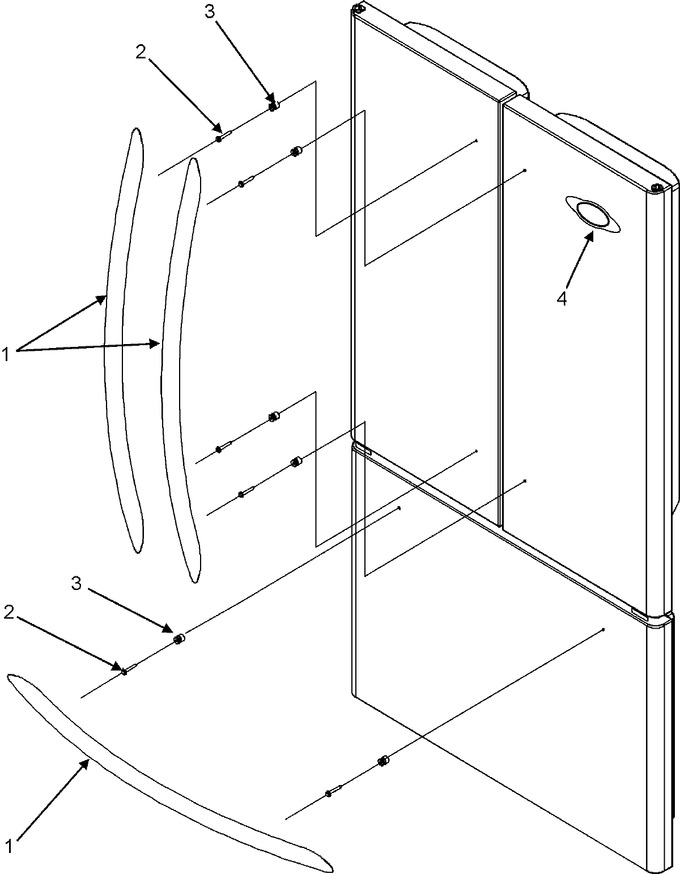

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13004701W		Handle Assy., Door (wht)   (Replaces: 67006114)	10			$ 193.97
2	WP3387230		Screw, Mount   (Replaces: 67002935)	10		Immediately	$ 8.54
3	WP67006113		Mount, Handle   (Replaces: 67006113)	10		Immediately	$ 12.56
4	2324038		Nameplate   (Replaces: 67006439)	10			$ 71.59
