Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP8182119 Bellow   (Replaces: 8182119) In-Stock Immediately $ 187.27

2 WP8182210 Clamp, Bellow (rear)   (Replaces: 8182210) In-Stock Immediately $ 35.04

3 8183024 Lock, Door Special Order $ 238.58

4 WP8540725 Screw   (Replaces: 8181760) Special Order $ 7.68

5 WP8181651 Hook, Door   (Replaces: 8181651) In-Stock Immediately $ 12.46

6 W11230114 Screw   (Replaces: 8181758) Special Order $ 13.28

7 W10902779 Clamp, Bellow (front)   (Replaces: 8182211) In-Stock Immediately $ 30.31

8 8183025 Tube, Dispenser To Bellow Appelez-nous -
9 8182854 Door Appelez-nous -
10 2252312 Handle, Door Appelez-nous -
11 8182958 Screw Appelez-nous -
12 8182964 Nut, Acorn Appelez-nous -
13 8182961 Lockwasher Appelez-nous -
14 8182953 Washer, 8 Appelez-nous -
15 8181655 Glass, Door Appelez-nous -
16 8182903 Ring, Glass Retaining Appelez-nous -
17 8182856 Hinge, Door Appelez-nous -
18 8182930 Screw Appelez-nous -

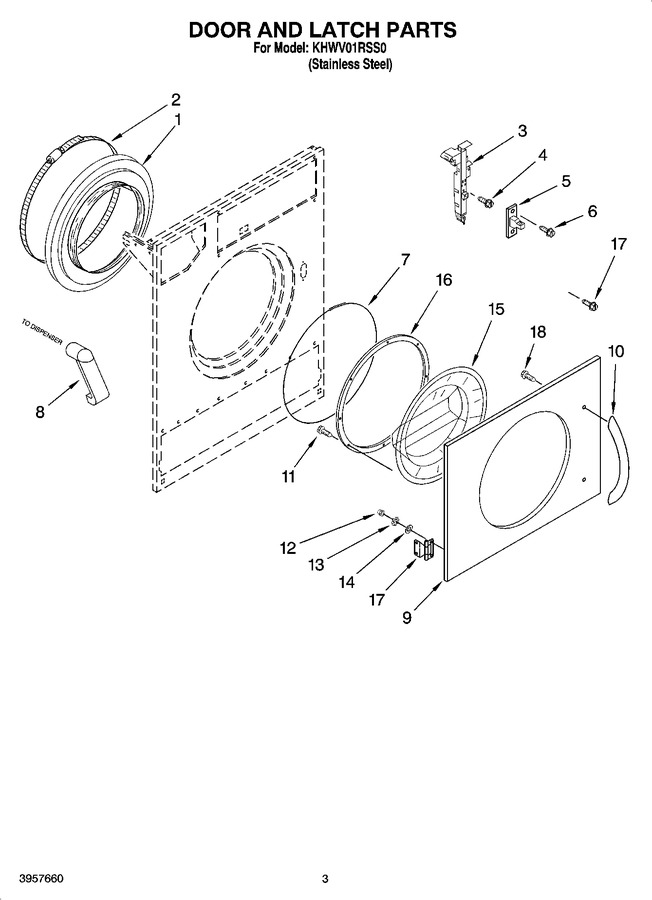

    View Diagram in Separate Window     Print Icon   Print Part List
