SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts

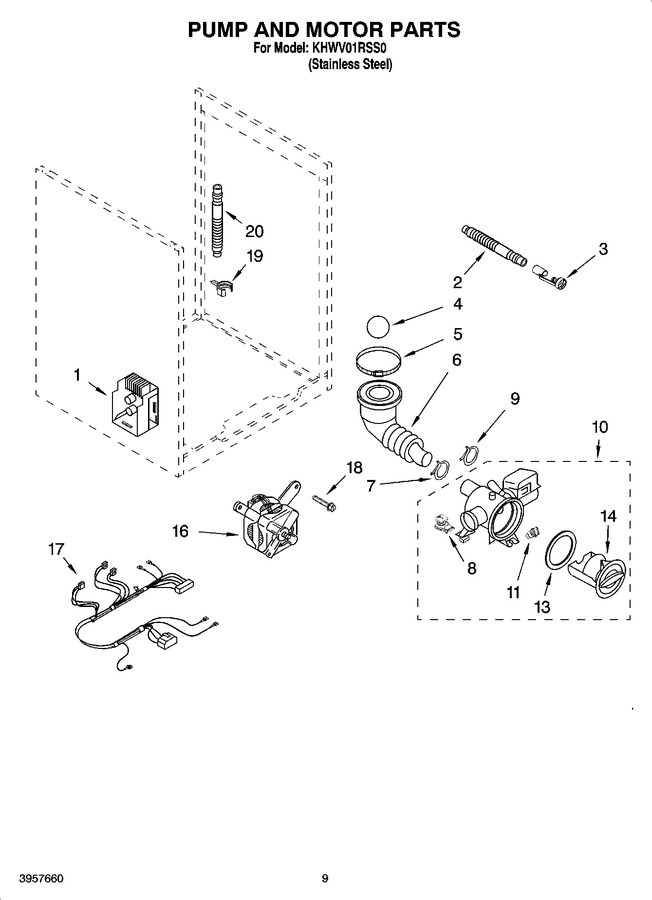

06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10756692		Control Unit (motor)   (Replaces: 8182706)			Immediately	$ 407.85
2	8183028		Hose, Drain (pump Service)		Appelez-nous	-
3	8183029		Cap, Drain Hose		Appelez-nous	-
4	W10121657		Ball   (Replaces: 8181733)				$ 20.03
5	WP696392		Clamp   (Replaces: 8181734)				$ 8.12
6	WPW10467168		Hose, Tub To Pump   (Replaces: 8181732)			Immediately	$ 38.31
7	WP285655		Clamp   (Replaces: 8181753)			Immediately	$ 8.39
8	8182820		Damper, Rubber (rear)		Appelez-nous	-
9	WP3367052		Clamp   (Replaces: 8181752)				$ 8.32
10	8183020		Pump (complete)		Appelez-nous	-
11	WPW10526202		Damper, Rubber (front)   (Replaces: 8182816)				$ 16.23
13	8181736		Seal, Filter Cap				$ 36.51
14	8183027		Cap, Filter				$ 28.31
16	8182793		Motor				$ 323.53
17	8183035		Harness, Motor		Appelez-nous	-
18	8181761		Bolt, Motor		Appelez-nous	-
19	8182209		Retainer, Drain Hose				$ 20.57
20	WPW10003250		Drain Hose (inner)   (Replaces: 8181740)			Immediately	$ 34.59
	285863		Drain Extension			Immediately	$ 32.43
	8212510		Wipes, Stainless Steel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
