Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8182865 Panel, Control Special Order $ 2,013.68

2 8182857 User Interface Appelez-nous -
3 8182224 Brace, Front Top Appelez-nous -
4 8181640 Channel, Water Appelez-nous -
5 8183023 Microcomputer, Machine Control Appelez-nous -
6 WP488729 Screw   (Replaces: 8181756) In-Stock Immediately $ 8.28

7 8182212 Harness, Wiring (main) Special Order $ 139.63

8 8182855 Power Supply Board Appelez-nous -
8 8182852 Harness, U/i To Power Supply Appelez-nous -
8 8182853 Harness, Filter To Power Supply Appelez-nous -
8 8182851 Harness, Control To Power Supply Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

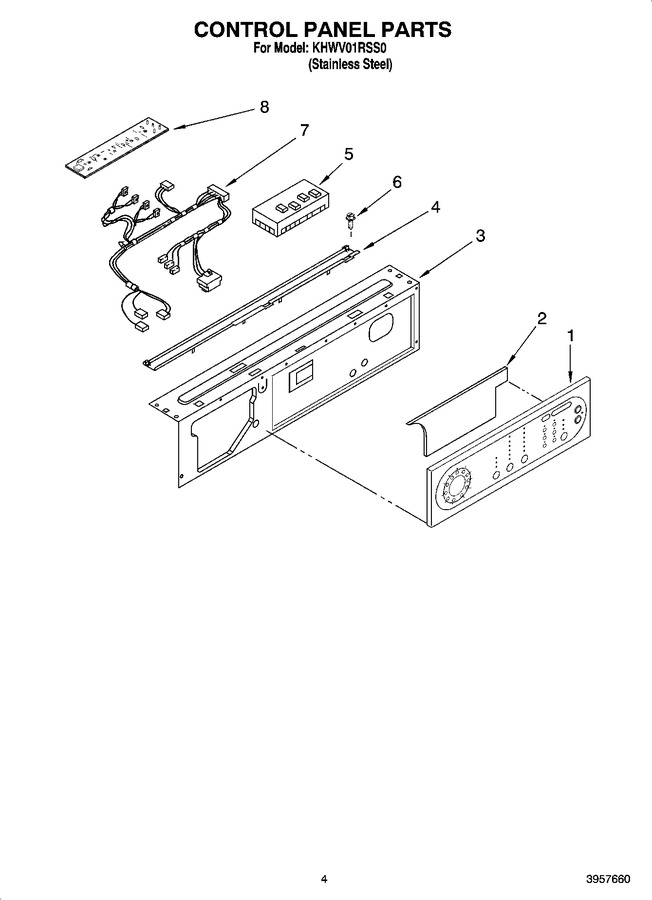

Diagram for KHWV01RSS0
