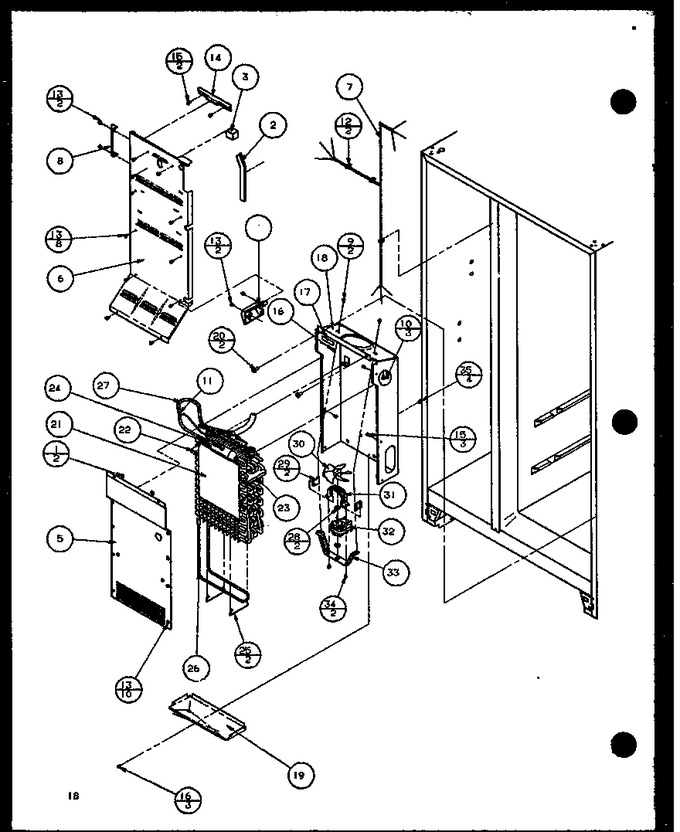

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B8324801 | Clip Ground |
|
- | |||||
| 2 | B8386602 | Gasket |
|
- | |||||
| 3 | C8976102 | Gasket, Air Block |
|
- | |||||
| 4 | D7786901 | Cover, M.k Air |
|
- | |||||
| 5 | D7865901 | Cover Evap |
|
- | |||||
| 6 | D7821103 | Back, Inner Frz |
|
- | |||||
| 7 | D7866901 | Harness M.c. |
|
- | |||||
| 8 | D7838301 | Cover, Supply Air |
|
- | |||||
| 9 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 10 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 11 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 12 | M0322202 | Tie Wire |
|
- | |||||
| 13 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 14 | C8976201 | Clamp |
|
- | |||||
| 15 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 16 | 10098801 | Rivet |
|
- | |||||
| 17 | B5757707 | Gasket, Foam |
|
- | |||||
| 18 | D7865802 | Shield |
|
- | |||||
| 19 | D7850202 | Drip Tray Pnt. |
|
- | |||||
| 20 | M0580003 | Grommet |
|
- | |||||
| 21 | B8327901 | Gasket, Evap. |
|
- | |||||
| 22 | B8385502 | Block-lh Air Coil |
|
- | |||||
| 23 | B8385601 | Block P M Air Coil |
|
- | |||||
| 24 | WPC8972006 | Thermostat Tri 111 (Replaces: C8972006) |
|
$ 112.48 | |||||
| 25 | C8983101 | Clip, Evap. Heater |
|
- | |||||
| 26 | D7872801 | Heater, Defrost |
|
$ 67.23 | |||||
| 27 | R0170031 | Assy,low Side-thin Wall Evap |
|
- | |||||
| 28 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 29 | A1047901 | Shim |
|
- | |||||
| 30 | C8795501 | Fan-evap |
|
- | |||||
| 31 | C8881301 | Brkt Evap Fan |
|
- | |||||
| 32 | WPC8891605 | Motor, Evap Fan (Replaces: C8891601) |
|
$ 344.82 | |||||
| 33 | D7767701 | Bracket, Motor Shroud |
|
- | |||||
| 34 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 8.76 | ||||
| 35 | M0580002 | Grommet A |
|
- |
