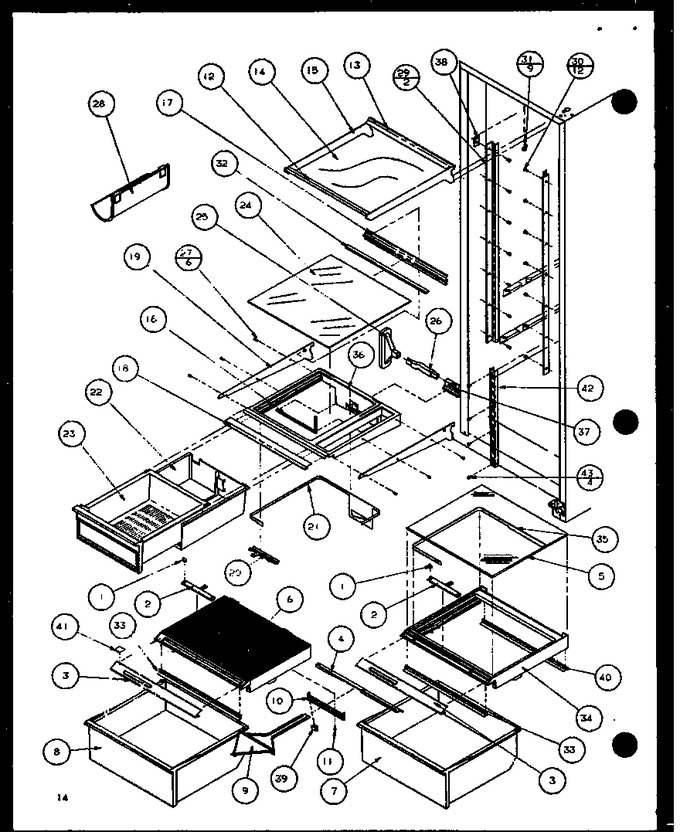

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10038403 | Knob, Crisper Control |
|
- | |||||
| 2 | YD7860605 | Slide, Crisper |
|
- | |||||
| 2 | D7860602 | Slide Crisper Cont. A |
|
- | |||||
| 3 | D7616654 | Trim, Crisper Front |
|
- | |||||
| 4 | D7764106 | Damper, Humidity Control |
|
- | |||||
| 5 | 10036029 | Glass Top Crisper |
|
- | |||||
| 6 | D7856904 | Top Crisper |
|
- | |||||
| 7 | D7817213 | Pan Crisper |
|
- | |||||
| 8 | D7782019 | Crisper Pan, Lower |
|
- | |||||
| 9 | D7782205 | Slide, Arm Crisper Control |
|
- | |||||
| 10 | D7807603 | Support, Slide |
|
- | |||||
| 11 | M0230017 | Screw,tc |
|
- | |||||
| 12 | 10049915 | Trim |
|
- | |||||
| 12 | 10049916 | Trim |
|
- | |||||
| 13 | C8913614 | Trim, Glass Shelf |
|
- | |||||
| 13 | C8913606 | Trim, Glass Shelf Rear |
|
- | |||||
| 14 | 10036023 | Glass, Full Shelf |
|
- | |||||
| 14 | 10036032 | Glass Half Shelf |
|
- | |||||
| 15 | D7871017 | Frame Cant. |
|
- | |||||
| 15 | D7871006 | Frame, Cant. Shelf |
|
- | |||||
| 16 | A3263905 | Gasket-per Ft |
|
- | |||||
| 17 | C8990404 | Trim-m.k., Top, Rear |
|
- | |||||
| 18 | 10049914 | Trim |
|
- | |||||
| 19 | D7862958 | Side Rail |
|
- | |||||
| 19 | D7862959 | Side Rail |
|
- | |||||
| 20 | D7859401 | Slide-mk Control |
|
- | |||||
| 21 | D7859503 | Band M.k. Control |
|
- | |||||
| 22 | D7817907 | Sleeve M.k. |
|
- | |||||
| 23 | D7814012 | Pan, Meat |
|
- | |||||
| 24 | 10036026 | Glass Shelf |
|
- | |||||
| 25 | D7873601 | Grommet, Mk |
|
- | |||||
| 26 | D7869001 | Xduct M.k. Air |
|
- | |||||
| 27 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 28 | D7547614 | Rack, Bottle |
|
- | |||||
| 29 | D7789806 | Ladder Cantilever |
|
- | |||||
| 29 | D7789805 | Ladder Cantilever |
|
- | |||||
| 30 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 6.95 | ||||
| 31 | M0580007 | Grommet, Screw |
|
- | |||||
| 32 | 10043102 | Ext. Rear Glass |
|
- | |||||
| 33 | 10042103 | Seal, Crisper Rear |
|
- | |||||
| 34 | D7853203 | Frame |
|
- | |||||
| 35 | D7859603 | Band Crisper Control |
|
- | |||||
| 36 | D7857003 | Frame, Mk |
|
- | |||||
| 37 | D7869102 | Ext. Air Duct |
|
- | |||||
| 38 | C8992301 | Bracket |
|
- | |||||
| 39 | M0118102 | Clip |
|
- | |||||
| 40 | 10042104 | Seal, Crisper, Rear |
|
- | |||||
| 41 | 10151002 | Insert, Crisper Top |
|
- | |||||
| 42 | D7599003 | Ladder, Center |
|
- | |||||
| 43 | M0230923 | Screw |
|
- | |||||
| NI | D7871307 | Crisper Top Assy Q |
|
- | |||||
| NI | R0179158 | Glass Crisper Top Assy |
|
- | |||||
| NI | D7871826 | Glass Shelf Assy |
|
- | |||||
| NI | D7871822 | Glass Full Shelf Assembly |
|
- |
